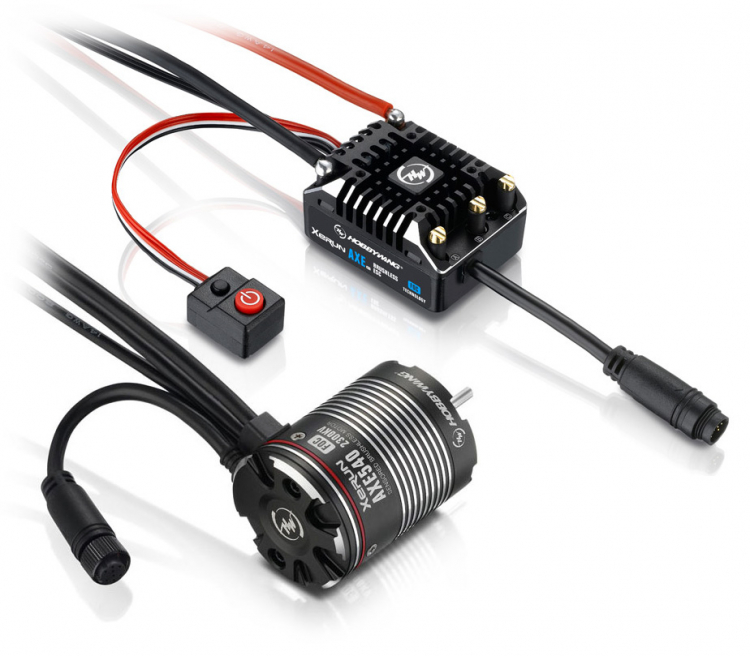

Hobbywing XeRun AXE540 1200KV & AXE FOC ESC V1.1 System Combo
This is a combo set that includes a brushless sensored AXE V1.1 ESC and a AXE540 motor made for crawlers.
-
Applications:
- Vehicles: 1/10 Rock Crawlers
- Motors: Only XeRun AXE Series
-

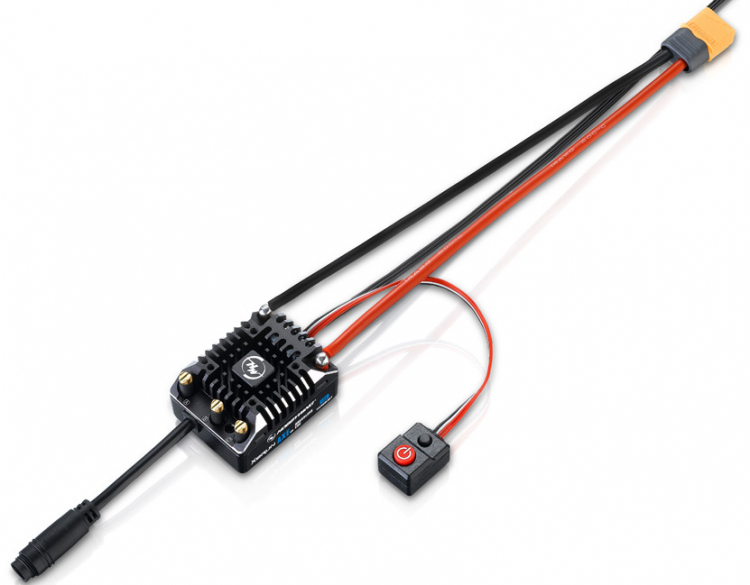

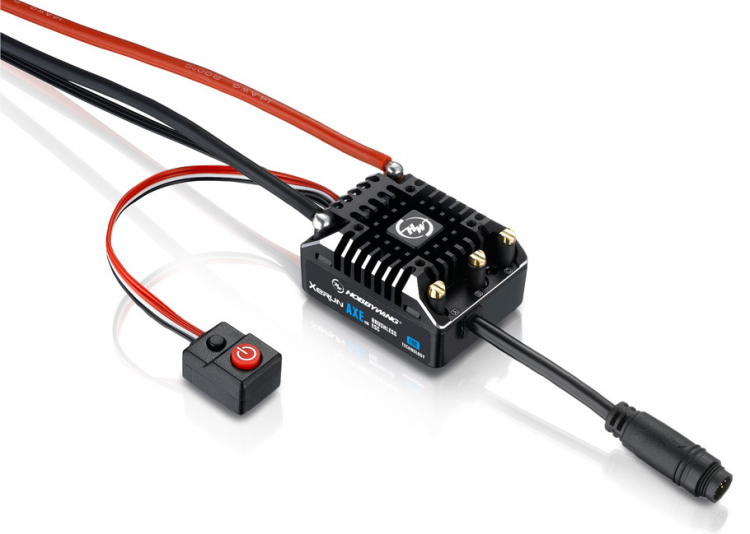

ESC Specifications:
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: YES
- Cont./Peak Current: 60A/360A
- Input Voltage: 2-3S LiPo, 6-9S NiMH
- BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
- Input Wires: 12AWG 200mm
- Output Wires: No
- Input Connectors: XT60
- Output Connectors: No
- Size: 47.4 x 36.2 x 24.6mm
- Weight: 82g
-
ESC Programing via:
- Programming & Firmware Updates: Supported through the HW Link APP on your Bluetooth enabled Smartphone only
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Not Supported
- WiFi Express Module: Not Supported
- Programming Port: Built-in Bluetooth
-

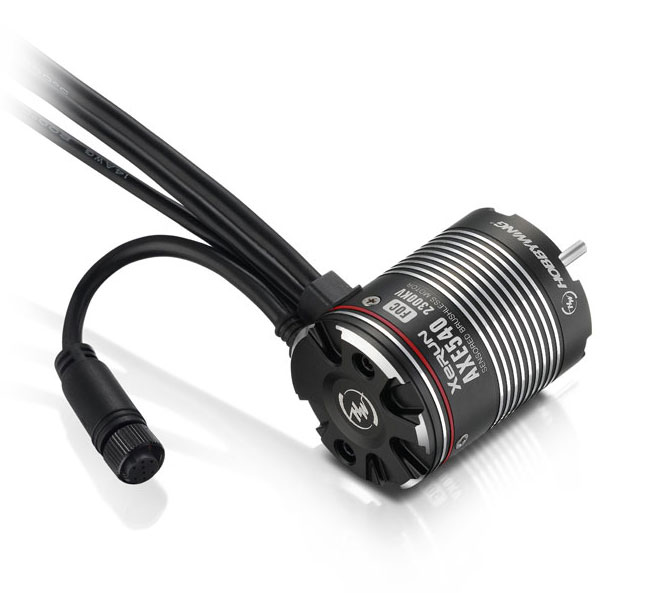

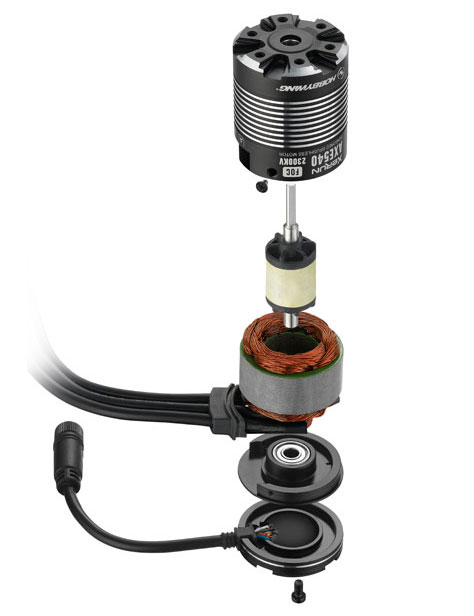

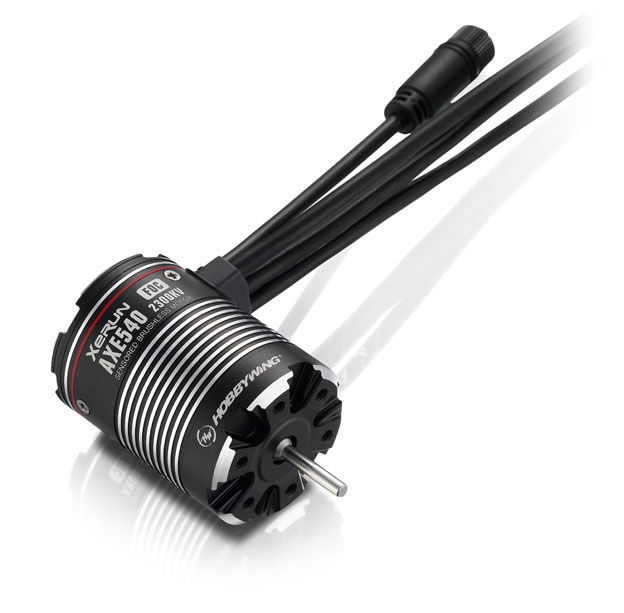

AXE540 Motor Specs:
- Poles: 4
- KV rating: 1200
- LiPo: 2-3S
- Resistance: 0.133Ω
- No-Load Current: 0.9A
- Diameter: 36 mm
- Length: 48.8 mm
- Shaft Diameter: 3.175 mm
- Shaft Length: 15.5 mm
- Weight: 175 g
