◆HIGH RESOLUTION DISPLAY
The same detailed dot as M12S enables so clear display.
Three kind of telemetry data can be displayed simultaneously because of gray scale display.
◆BEST POSITION FOR STEERING / THROTTLE
Steering/Throttle is arranged in the best position for operation.
Drop Down is used as standard postion.
◆THREE AAA BATTERIES
Three AAA batteries allows to be not only compact but also light.
◆USB CHARGE
When used with optional Li-Po 1 cell battery, weight become lighter and it can be changed from USB input.
■SYSTEM: 2.4GHz FH4T/FH3 ■4CH ■Transmitter: TX-471 ■Receiver: RX-482
[New features]
●Movable Carrying Handle

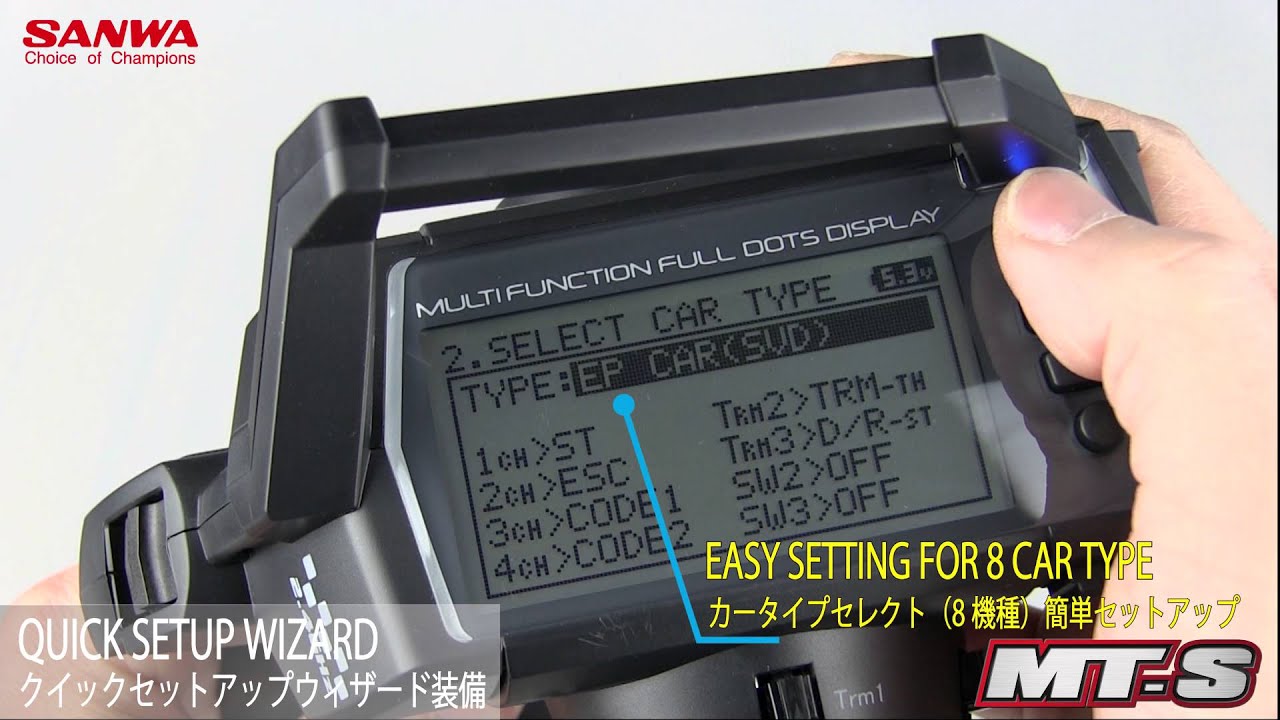

●Quick Setup Wizard
●Safety Link
●Racing Mode
●Customized Menu
●Micro SD card-compatible
●Telemetry Switch v●Clock
●Circumstance Temperature Display
●CSV Output for LOG data
●CODE 10-compatible (Naming support)
●Simultaneous three telemetry data display
●Three AAA Batteries
●Li-Po 1 cell-compatible (USB change support)
[Other functions]
●Large full dot LCD monitor
●Wight LED back light ●Full adjustable trigger
●Telemetry function
●Built-in antenna
●Multi Menu Selector
●ST/TH Tension Adjuster
●Dual Rate
●End Point Adjuster
●Anti-lock Brake
●Servo Speed
●Offset
●Trim/Sub trim
●Servo Reverse
●Curve (Exponential /Adjustable Rate Control)
●AUX1 (Movement type for 3CH. it’s the same as MT-4S function.)
●AUX2 (Movement type for 4CH. it’s the same as MT-4S function.)
●Fail safe (power/ battery)
●Timer (lap/ interval/ down)
●Lap
●Logger
●20 model memory (when used with SD card, 250 models is available.)
●Model Name (12 letters)
●Model (Select/ Clear/ Copy)
●Direct Model Select
●Trim Type (Center/ parallel)
●Throttle Type (70:30 / 50:50)
●RF MODE Setting (FH4T/FH3)
●Response Mode Setting (NOR/SHR/SSR)*
●Key Assign(SW/TRIM/DIAL/LEVER)
●AUX TYPE SETTINGv
・CODE AUX (w/ Naming function)
・STEP AUX (Step 1 – 100)
・POINT AUX (2 – 6 point)
・4WS MIXING (Front/Rear/Normal(coordinate phase)/Reverse(opposite phase))
・MOA MIXING (FWD/4WD/RWD)
●Buzzer(scale/volume)
●Transmitter Battery Alarm
●LCD Contrast
●Volume Adjustment
●Mechanical Rudder Angle
●Small Grip Pad
●Compatible Receivers:
＊Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
＊Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)
[SSL(SANWA Synchronized Link)

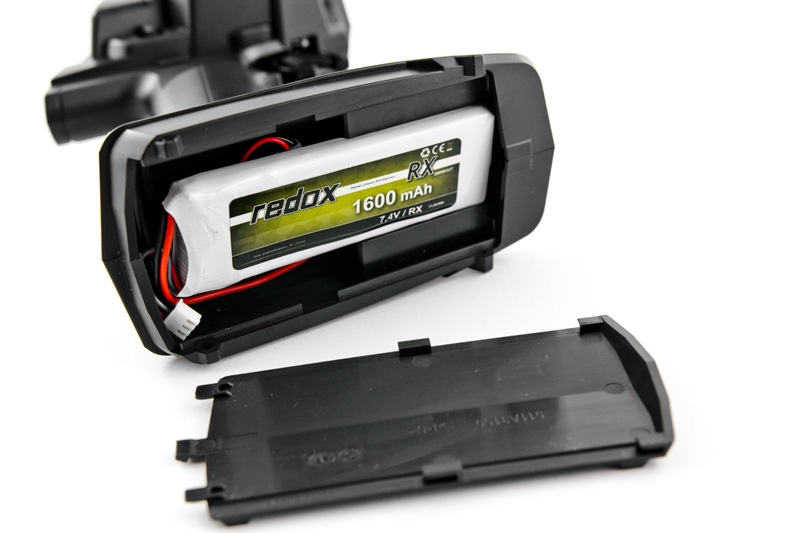

REDOX battery not included!
