High-quality brushless motor BLDC (outrunner) for model aircraft. Easy front and rear attachment possible. Complete with fastening material and small parts.
Product features
- Optimized cooling thanks to open design
- High-quality ball bearings
- Finely balanced rotors
- High-temperature resistant neodymium magnets
Area of application
- 3D model aircraft up to 350g
- Aerobatic models up to 400g
- Gliders up to 600g

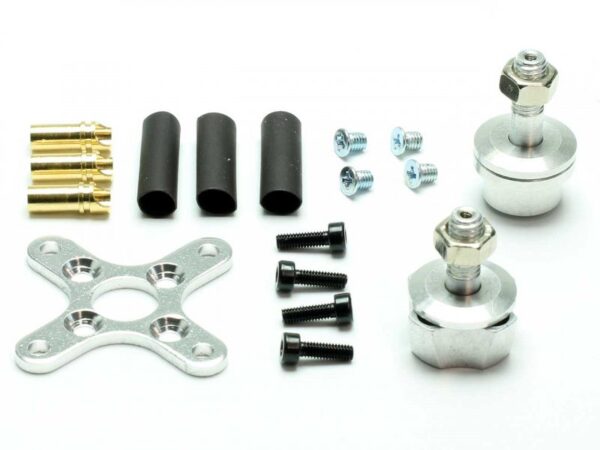

Scope of delivery
- BOOST 15 brushless motor
- Mounting cross made of aluminum
- 1 propeller adapter each for front bulkhead and rear bulkhead assembly
- Fastening screws
- Replacement motor shaft
- Instructions in German/English
Technical data
- Dimensions = 28 x 30mm
- Weight = 59g
- Shaft Ø = 3.2mm (3.175mm)
- LiPo / NiXX = 2 -3 / 6 -10
- Revolutions per volt/min. = 1000 rpm-1 (KV)
- Max. load (60 sec.) = 12A
- Brushless controller (recommended) = PICHLER XQ+ 25, #15922
Propeller (recommended)
- PI-CON 8×4, # C5746
- PI-CON 9×6, # C5748
Special accessories (recommended)
- Brushless controller PICHLER XQ+ 25, # 15922
- Power Watts 150, # C7282
Note Of course, other propellers (e.g. 3-blade or smaller sizes) than those specified here can be used. Batteries with a different capacity, e.g. higher capacity, can also be used. Please ensure that the permissible currents (A) are not exceeded. For simple power measurement, we recommend our proven POWER WATTS 150, # C7282. A device that is always needed and should be part of every equipment.
