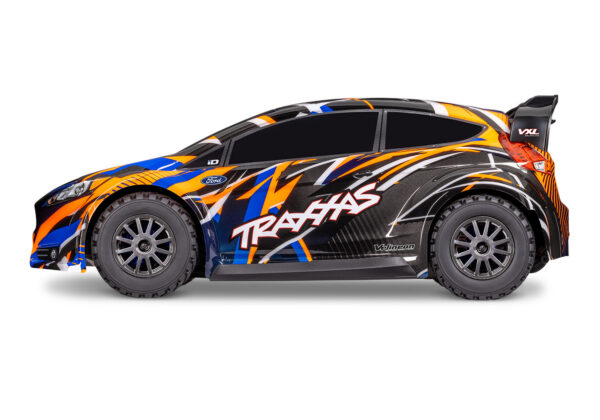

100+ KMH RALLY-BRED PERFORMANCE
The Traxxas Ford® Fiesta® ST Rally VXL dominates the track with agile handling, AWD traction, and the 60+ mph speed of the legendary Velineon® brushless power system. Rally’s officially licensed clipless body and high-grip gravel tires offer the full rally racing experience. Additionally, Fiesta ST Rally now comes standard with Traxxas’ Extreme Heavy Duty Upgrade parts for game-changing strength and durability.
EXTREME BRUSHLESS POWER
TFiesta ST Rally VXL’s Velineon 3s brushless power system delivers the ultimate in efficiency, speed, and run-time with precise and responsive
throttle control. Rally VXL transforms 3s LiPo power into lightning-fast speed and tire-melting acceleration. This is brushless performance done
the Traxxas way: brutally fast and easy to use.
EXTREME HEAVY DUTY UPGRADE PARTS
Rally’s factory-installed Extreme Heavy Duty Upgrade parts replace key drivetrain and suspension components with beefed-up parts made for ultimate
strength and durability. From the HD shock towers to the steel wheel hubs, this is the strongest driveline ever offered in a Rally.

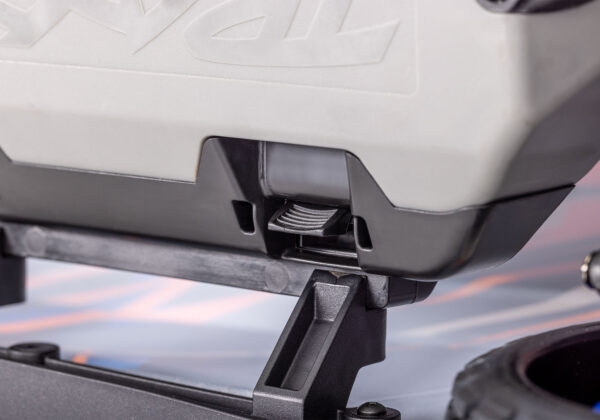

CLIPLESS CONVENIENCE
Rally’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and
snap it into place for a secure hold. When it’s time to change the battery, release the side tabs and lift up to access the chassis in just
seconds.
FEATURES
- Clipless Body

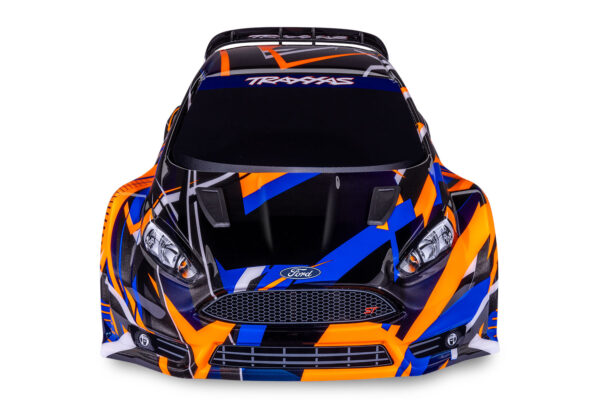

- Officially licensed Ford® Fiesta® ST body
- Pre-painted with applied decals
- Tough composite rear wing
- High approach angle front bumper
- Internal reinforcement with integrated nerf bars
- Holds tight for intense action
- Quick and easy removal
- Extreme Heavy Duty Upgrade parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks

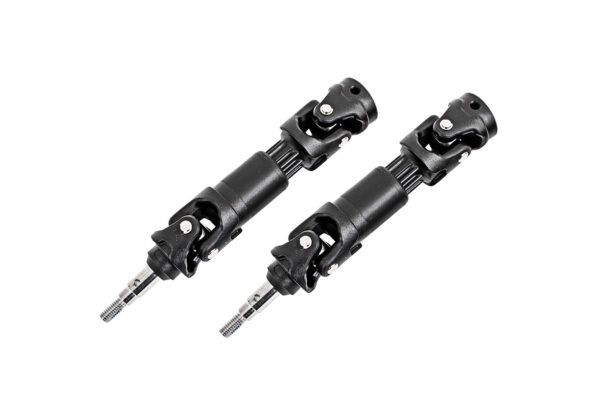

- Extreme heavy duty driveshafts
- Oversize diameter
- 6 mm axles
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- Programmable multi-function knob
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

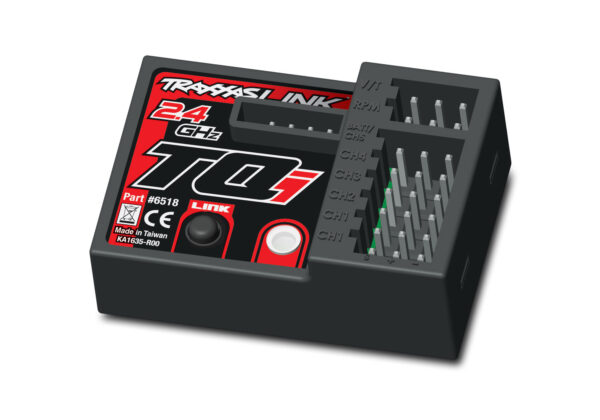

- 5-channel receiver (6533) with fail-safe security
- Waterproof receiver box with easy-access plug
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the model
- Adjusts from off to 100% assistance from the transmitter

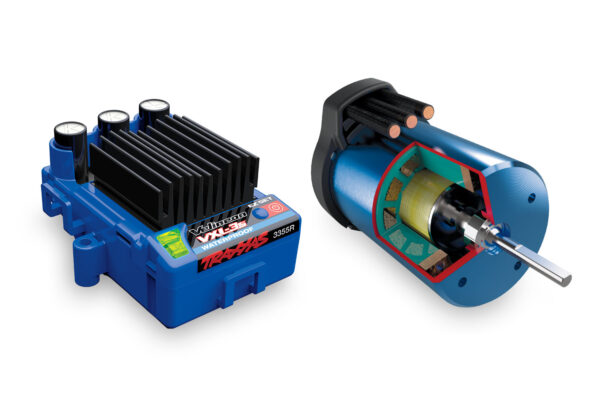

- VXL-3s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-8 cells (7.2 to 9.6 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Velineon® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish

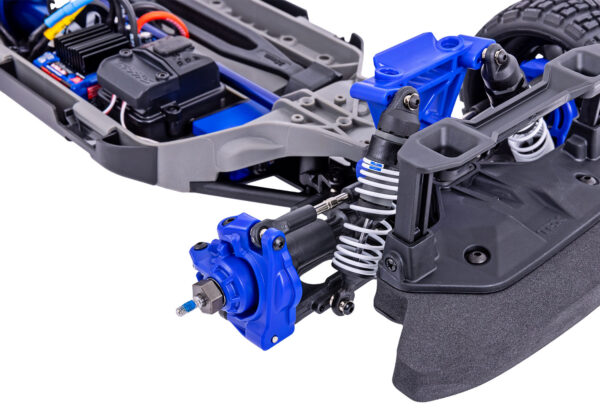

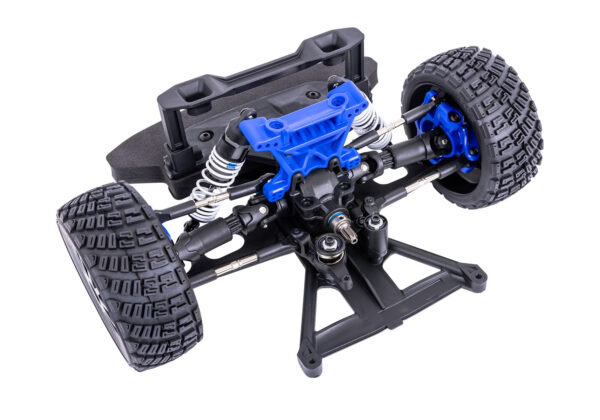

- Steering
- Chassis-mounted 2075
servo - Dual bellcrank design with integrated servo saver
- Chassis-mounted 2075

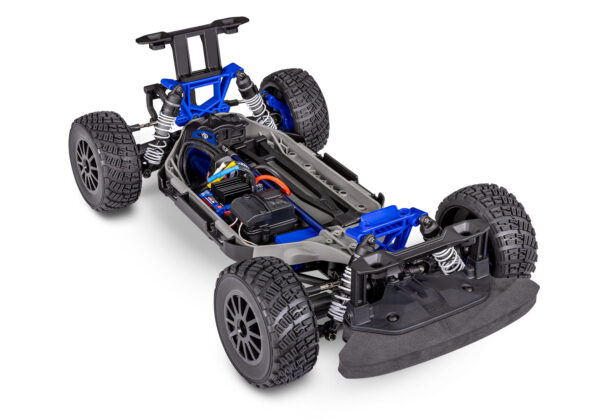

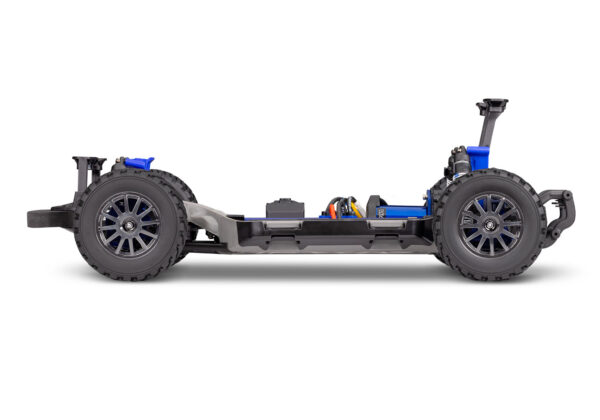

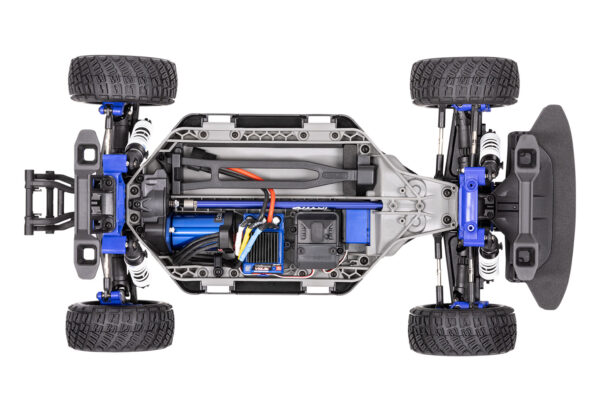

- Chassis
- High approach angle front bumper

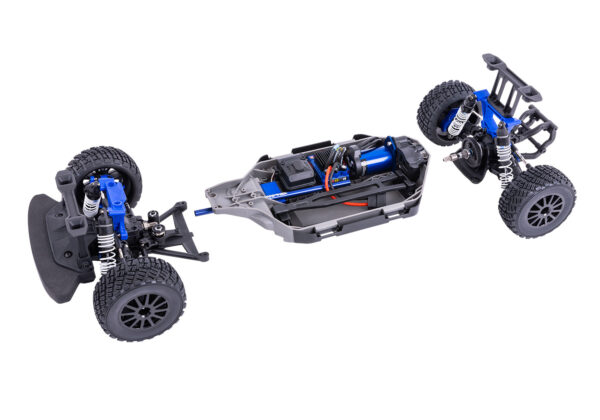

- Modular chassis makes maintenance quick and easy

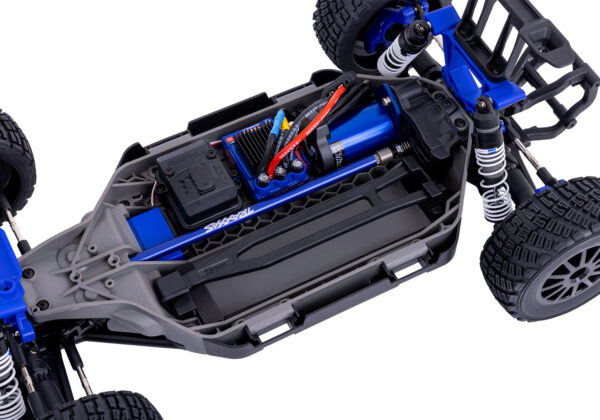

- Batteries and electronics held low for improved handling
- Low-CG design dramatically increases corner speed
- Easy motor access with single-screw motor plate attachment
- Suspension
- Oil-filled Ultra Shocks™
- White powder-coated springs

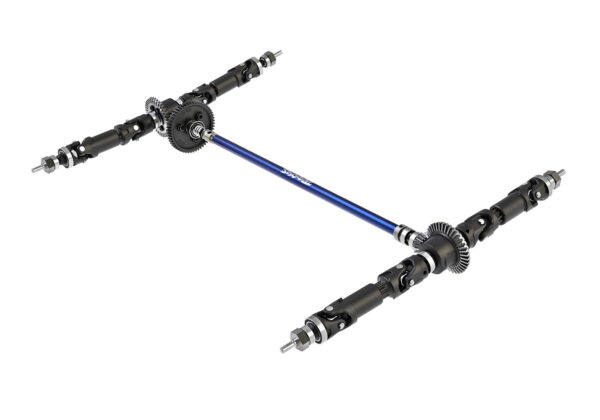

- Drivetrain
- Heavy Duty slipper clutch with aluminum pads
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch spur gear

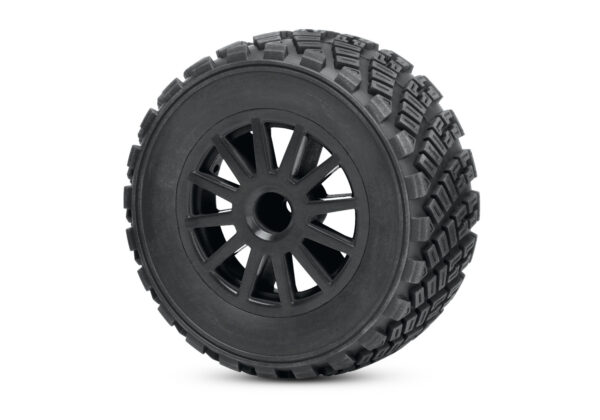

- Wheels and Tires
- 2.2″ outer, 3″ inner diameter dual-profile 12-spoke rally wheels
- Pre-glued all-terrain rally tires with performance foam inserts
- Steel wheel hexes
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
Specifications
| Length: | 21.00 inches (535 mm) |
|---|---|
| Front Track: | 11.00 inches (281 mm) |
| Rear Track: | 11.00 inches (281 mm) |
| Ground Clearance: | 0.80 inches (21 mm) |
| Weight (no battery): | 5.8 pounds (2.63 kg) |
| Height (overall): | 8.10 inches (206 mm) |
| Wheelbase: | 12.8 inches (324 mm) |
| Shock Length (front): | 3.45 inches (88 mm) – Long |
| Shock Length (rear): | 3.98 inches (101 mm) – XX-long |
| Speed Control: | Velineon® VXL-3s™ electronic speed control |
| Motor (electric): | Velineon 4-pole 3500 kV sensorless brushless |
| Overall Drive Ratio: | 11.82:1 |

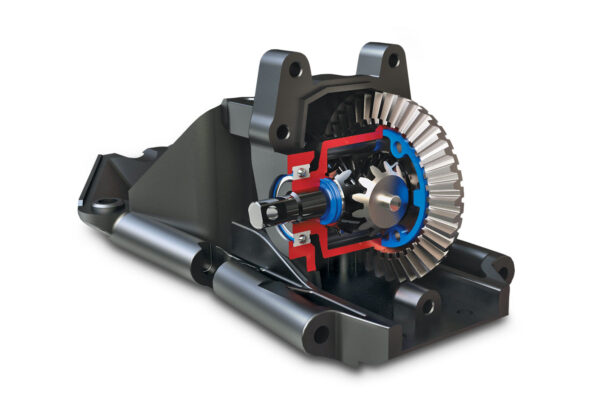

| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Pitch: | 32 pitch |
| Chassis Structure/Material: | Composite tub |
| Drive System: | Shaft-driven 4WD |
| Steering: | Dual bellcrank with integrated servo saver |
| Tires: | Gravel pattern directional with foam inserts |
| Tire Diameter: | 3.0 inches (76 mm) (front and rear) |
| Wheels (front/rear): | 12-spoke rally wheels |
| Wheel Diameter: | 2.2″ (56 mm) (outer), 3.0″ (76 mm) (inner) |
| Radio System: | TQi™ 2.4 GHz (2-channel) |

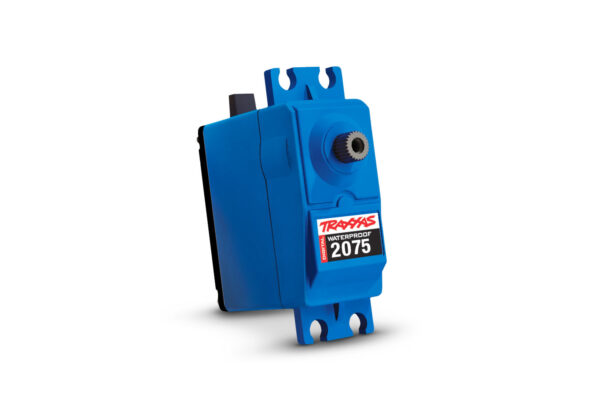

| Servo: | Waterproof digital 2075 servo (125 oz-in torque) |
| Skill Level: | 2 |
| Battery Compartment (L/W/H): | 165 x 50 x 23/26 mm |
| Required Batteries: | 4 “AA” (transmitter), Vehicle Battery |
Karbist leiad
- Kokkupandud Ford Fiesta ST Rally VXL mudel koos värvitud kerega
- TQi™ 2.4GHz raadiosüsteem
- Juhendid, joonised ja lihtsamad tööriistad
- AA patareid saatja jaoks
Juurde vajad
- 2-3S LiPo akut ja sobivat laadijat
