High-quality brushless motor BLDC (outrunner) for model aircraft. The BOOST motor series is the result of over 15 years of experience in the field of modern electric drives.
Product features
* Highest manufacturing quality
* Perfect ventilation thanks to open housing design
* Using the best materials
* High temperature resistant neodymium magnets
* Extra large quality ball bearings
Area of application – model/take-off weight
3D aerobatic models up to approx. 350g
Aerobatic models up to approx. 400g
Scale models and trainers up to approx. 500g
Sailors up to approx. 600g

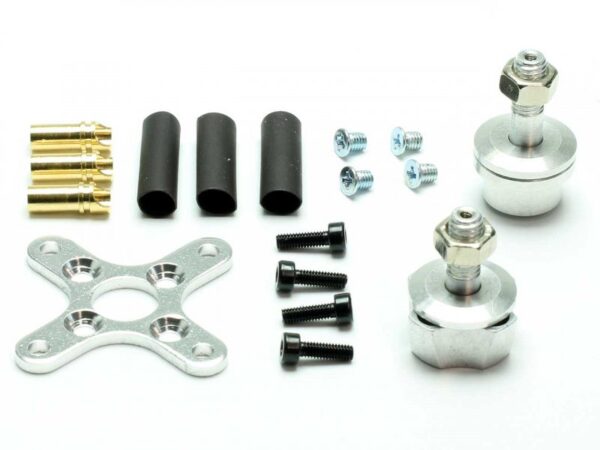

scope of delivery
BOOST 10 brushless motor
XQ+ 15A regulator
Aluminum mounting cross
1 propeller adapter each for front frame and rear frame assembly
Fastening screws
Replacement motor shaft
Instructions German/English
Technical data
Dimensions Ø = 28mm / L = 25mm
Weight = 49g
Shaft diameter = 3.2mm (3.175mm)
LiPo battery (recommended) = 2 -3 cells
Idle speed per volt = 1400 rpm (KV)
Max. load = 10A (20s)
Propeller (recommended)
PI-CON 7×5, #C5745 @ 2S LiPo (7.4V)
PI-CON 6×4, #C5744 @ 3S LiPo (11.1V)
LiPo battery (recommended)
LEMONRC 1000-7.4,
RED POWER 1100-11.1V
Special accessories (recommended)
Programming box, #15966
You can find an overview of all BOOST brushless motors here
Note Of course, other propellers (e.g. 3-blade or smaller sizes) than those specified here can also be used. Batteries with a different, e.g. higher capacity can also be used. Please ensure that the permissible currents (A) are not exceeded. We recommend our proven POWER WATTS 150, # C7282, for easy current measurement. A device that you need again and again and should not be missing from any equipment.
