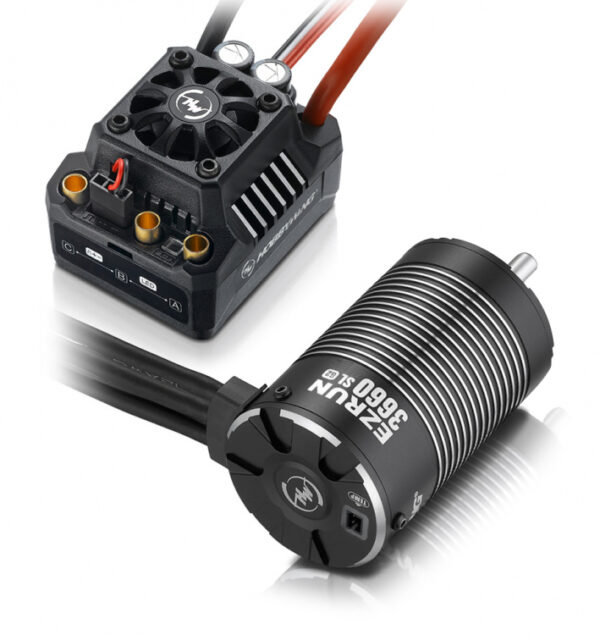

This is a brushless Hobbywing EzRun combo set made for 1/10 scale Short Course Trucks and high performance fun!
EzRun 3660SL-G2-4000Kv Motor Specifications:
- Type: 1/10, Bruhsless, Sensorless Motor
- Poles: 4
- KV Rating: 4000
- LiPo Cells: 2-3S
- Shaft Diameter: 5mm
- Outer Diameter: 36mm
- Length: 60mm
- Weight: 268g
- Ballbearings: ID5 x OD13 x T4 mm
EzRun MAX10-SCT ESC Specifications:
- Type: 1/10, Brushless, Sensorless
- Waterproof: Yes
- Cont./Peak Current: 120A/830A
- Input: 2-3S LiPo (in this combo set)
- BEC Output (Switch Mode): 6V/7.4V,4A
- Input Wires: 12AWG-200mm
- Output Wires: 12AWG-200mm
- Input Connectors: No
- Output Connectors: 4mm Bullet Connectors (Female)
- Cooling Fan: yes
- Size: 49 x 39.5 x 34.7mm
- Weight: 105g
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Firmware Upgrade: Supported
Applications:
- Vehicles: 1/10 Short Course Trucks / Trucks / Monster Trucks
- KV Rating/T Count: 2S LiPo: KV≤6000, 3S LiPo: KV≤4000, 4S LiPo: KV≤3000 (36XX Series of Motors)
