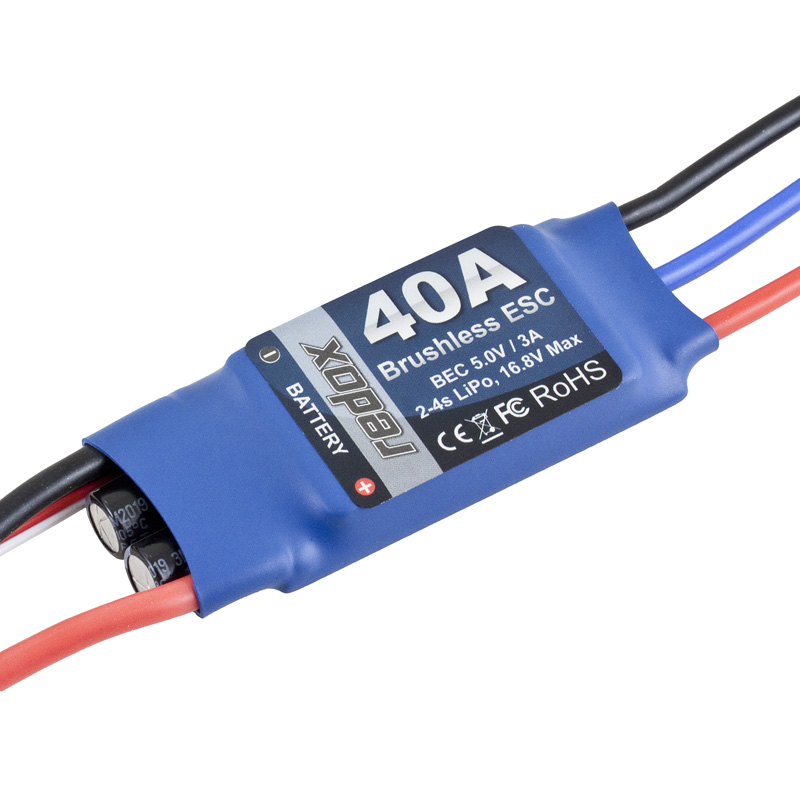

Redox 40A Brushless ESC

Redox 40A Electronic Speed Controller (ESC) for airplane brushless motors.

Programmable parameters:
Battery type: NiMH + NiCD / LiPo + LiIon
Cut Off type: Reduce / Cut-Off
Cut Off Voltage: Low / Middle / High (LiPo 2,8V / 3,0V / 3,2V / cell; NiMH 0% / 60% / 65%)
Timing mode: (Low / Middle / High)
Start mode: Very soft / soft / Accelerate
Governor mode: Heli-On / Heli-Off
Motor direction: Normal / Reverse
Restore default settings
Brake

Technical data:
Length: 64 mm
Width: 27 mm
Height: 10 mm
Weight: 52 g
Voltage Range: LiPo 2-4s (7,4 – 14,8V) or 5-10 NiXX cells (6 – 12,0V)
Momentary Load: 55A/10 sec.
Brief load: 40A
BEC Voltage: 3A/5V
Connectors: Deans plug/3x Gold 3,5 mm socket

White heatshrink
