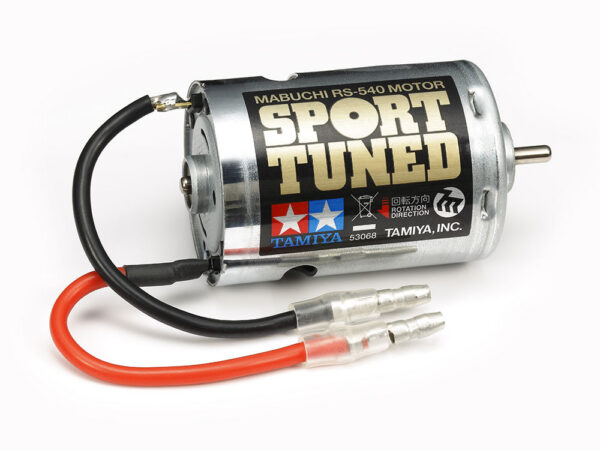

Specifications:
Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glith
High torque magnet and rotor
Small footprint (50mm long)
Tuned for rock climbing and Scale driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Performance Specs:
(At no load) RPM @ 7.2V : 8000 (?10%), 0.75Amp Current
(Max Efficiency) RPM @ 7.2V : 6800 (?10%), 3.35Amp Current
Designed Oprating temperature Range: -30?C to +80?C
Motor End play : .50mm max
Noise level: < 60db
