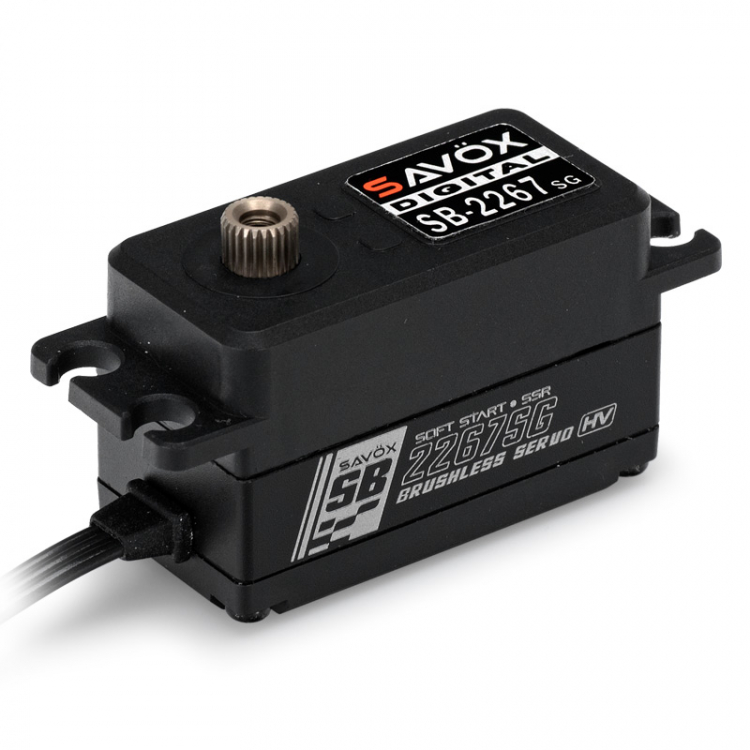

Savöx digital servo SB-2267SGHW Low Profile Brushless 23.0kg/0.08s

This powerful performance low profile servo from Savox utilize an aluminum middle case and super strong (and light) upper and lower composite plastic case case and a unique brushless motor & controller technology to boost power up to 35% over previous generation servos.

Tech Specifications:

• Servo Technology: Digital High Voltage
• Input Voltage: 6-8.4V
• Motor Type: Brushless
• Gear Material: Steel
• Output Gear Spline: 25 Tooth
• Bearings: 2 Ball Bearings
• Connector type: JR
• Case: Composite plastic top & bottom, aluminium middle
• Torque @ 6.0V: 18kg/cm
• Speed @ 6.0V: 0.10s/60deg
• Torque @ 7.4V: 25kg/cm
• Speed @ 7.4V: 0.08s/60deg
• Torque @ 8.4V: 32kg/cm
• Speed @ 8.4V 0.065s/60deg
• Dimensions (LxWxH): 40.8×20.2×26.05mm
• Weight: 57g
• Operating Temperature: -10°to +50°C)
• Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
