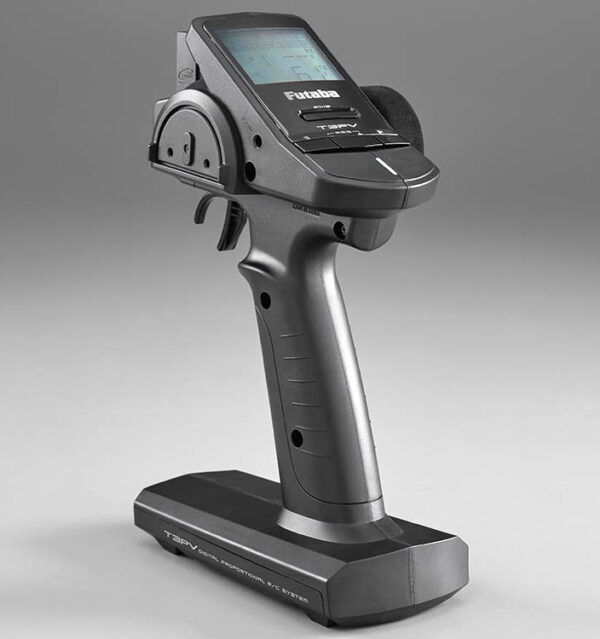

Hold the 3PV in your hand, and instantly feel how lightweight it is. Access the programming menu on the easy-to-read screen, and see how sophisticated it is. Experience the 3PV’s super-fast response rate, and realize that you’re in command of the system that can make a real difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/C’s most versatile surface system. The 3PV is available with a high-voltage R203GF receiver that’s an ideal match for brushless ESCs and digital servos.
T3PV Features:
- System: FHSS, S-FHSS & T-FHSS 2.4GHZ (T-FHSS / Telemetry only available with the optional R304SB(-E) receiver)
- 3+1 Channels (the 4:th channel can only be used when 4WS mixing (crawlers) or Brake mixing and with a 4-channel receiver)
- Channel 3 can be used on SW1 (two endpoints) or at DT3 where the D/R normally is at (stepped function)
- 10 Model Memory
- 4-Character Model Name
- Sub-Trim (CH1-4)
- Channel-4 Trim (only visible if 4WS or Brake Mixing is activated)
- Steering Dual Rates (D/R)
- Steering End Point Adjustement (EPA-CH1)
- Throttle End Point Adjustement (EPA-CH2)
- Channel-3 End Point Adjustement (EPA-CH3)
- Channel-4 End Point Adjustement (EPA-CH4) – this is only displayed when 4WS or Brake Mixing is activated
- 4-Wheel-Steering / Brake Mixing (SMX) (booth mixers can’t be used at the same time)
- Sero Reverse (CH1-4)
- Steering Exponential (EXP-CH1)
- Throttle Exponential (EXP-CH2)
- Throttle Fail-Safe (F/S)
- ABS Brakes (3- cycle speeds available)
- Model Data Copy
- Auto Power-Off after 10 minutes
Low Battery Alarm:
- 4x AA alkaline batteries – set LBA @ 4.2V
- 5 cell (6V) NiMH – set LBA @ 5.0V
- 2S (6.6V) LiFe – set LBA @ 5.8V
Available T-FHSS Telemetry Functions when using the R304SB(-E) receiver (not included):
- Receiver battery voltage (no sensor needed)
- External voltage (if this sensor is used the receiver battery voltage is not visible on the TX LCD) – SBS-01V
- No other telemetry sensors can be used
Suitable Receivers:
- R203GF S-FHSS (included)
- R304SB(-E) T-FHSS (optional) – Use only Futaba Digital & BLS servos
Optional TX Batteries:
- 4x AA alkaline batteries (battery holder included)
- YT1800A (5 Cell NiMH)
- HT5F1800B / FPEBA0142 (5 Cell NiMH)
- FT2F1700B / FPEBA0140 (2S 6.6V LiFe)
- FT2F2100B / FPEBA0135 (2S 6.6V LiFe)
T3PV-2.4G Transmitter:
- FHSS/S-FHSS/T-FHSS* system
- Wheel type
- 3+1 channels (the 4th channel is used for mixing functions only)
- Transmitting frequency: 2.4GHz band
- Power requirement: Size AA Dry cell battery x 4 (6V) (or 5-cell NiMH / 2-cell LiFe)
- Current drain: 100mA or less
- Transmission antenna: 1/2λ di-pole (Built-in)

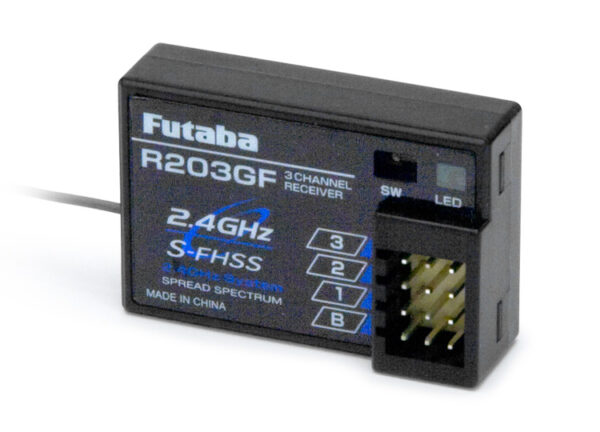

Receiver R203GF (included):
- 3 channels
- S-FHSS/FHSS auto detection system
- Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used)
- Size: 39 x 26 x 10 mm (excluding a projection part)
- Weight: 8 g
Receiver R304SB(-E) (optional):
- T-FHSS system
- 4 channels
- Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used.)
- Size: 35.1 x 23.2 x 8.5 mm (excluding a projection part)
- Weight: 6.6 g

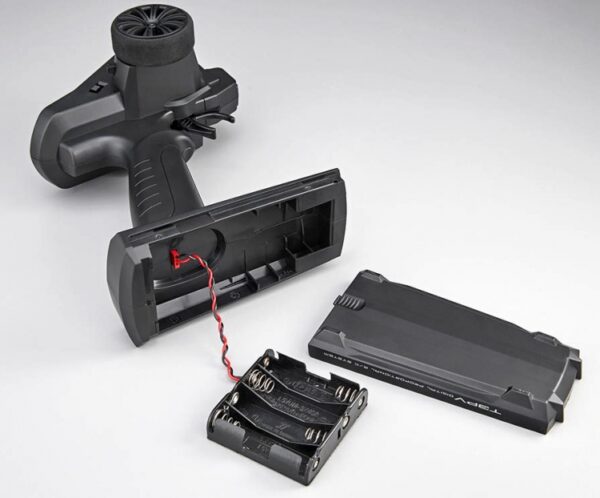

The battery compartment is accessed through the transmitter’s base, and can hold 4 “AA” alkaline batteries, NiMHs (such as the Yuntong #YT1800A) or a LiFe pack (such as the Futaba #FPEBA0140).
*T-FHSS available only with R304SB(-E) receiver (sold separately).
