Description

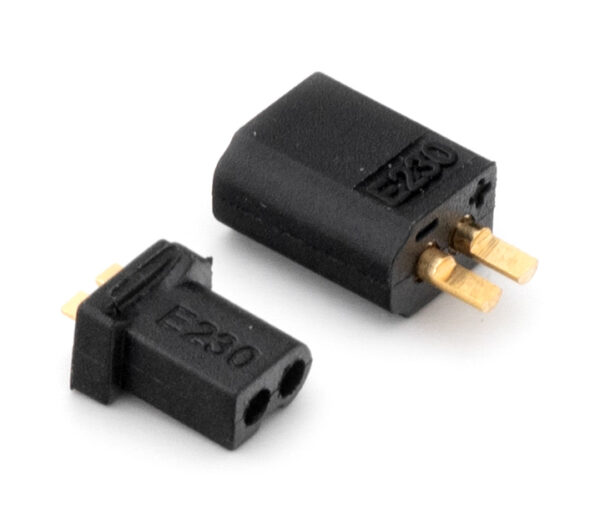

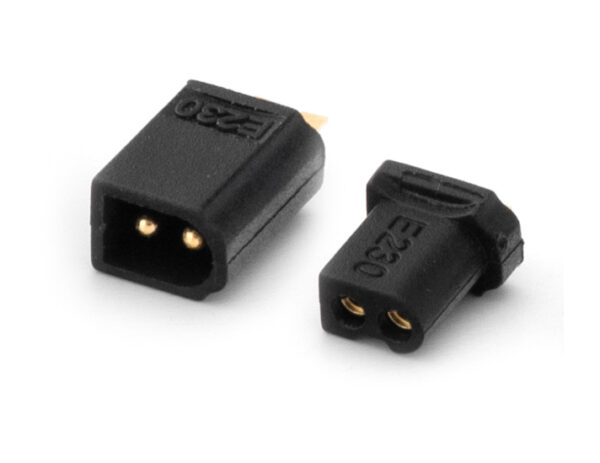

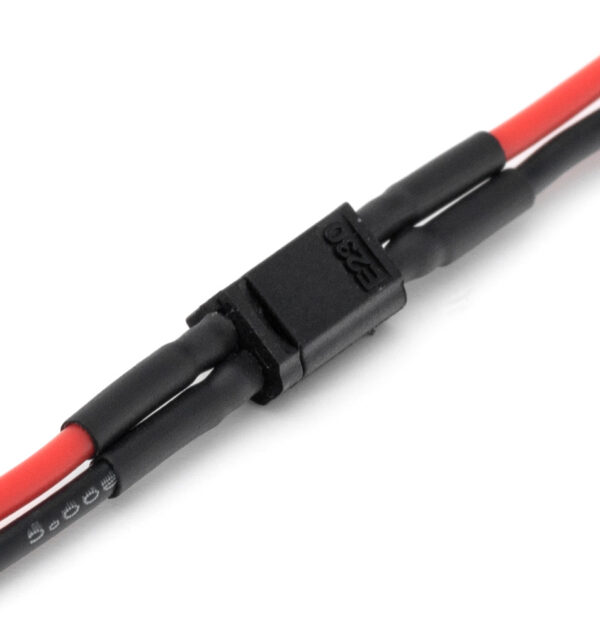

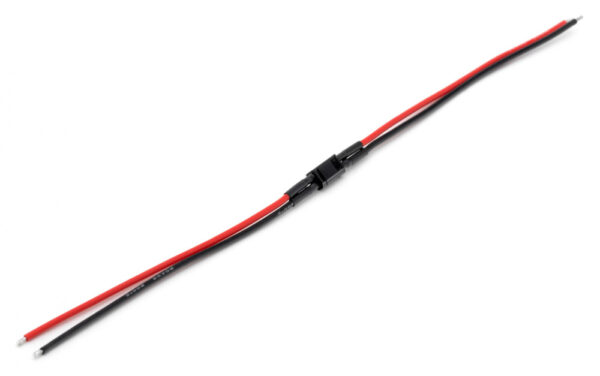

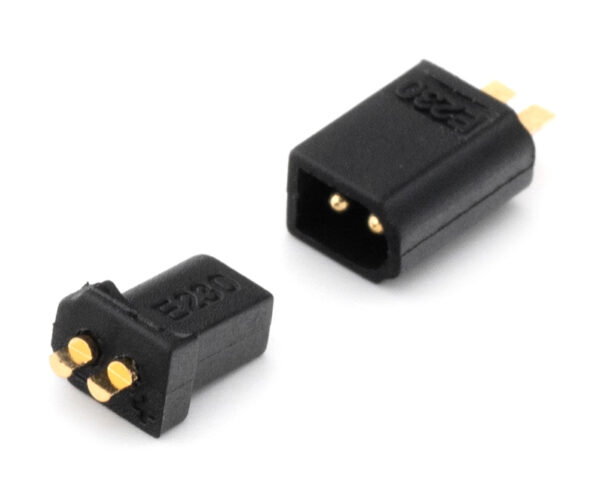

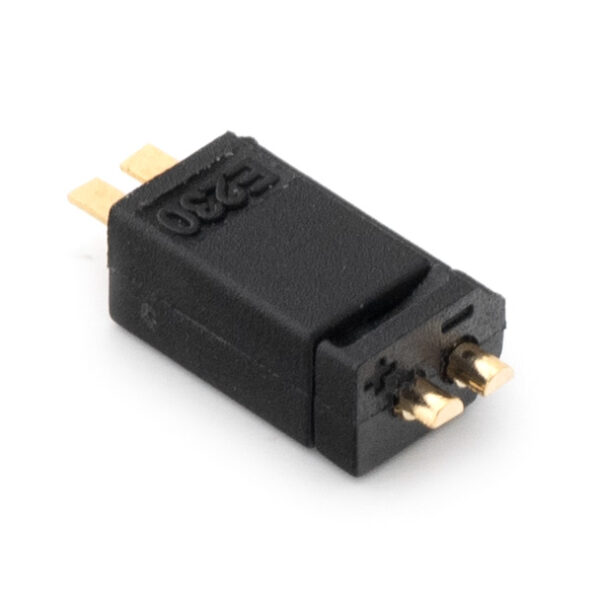

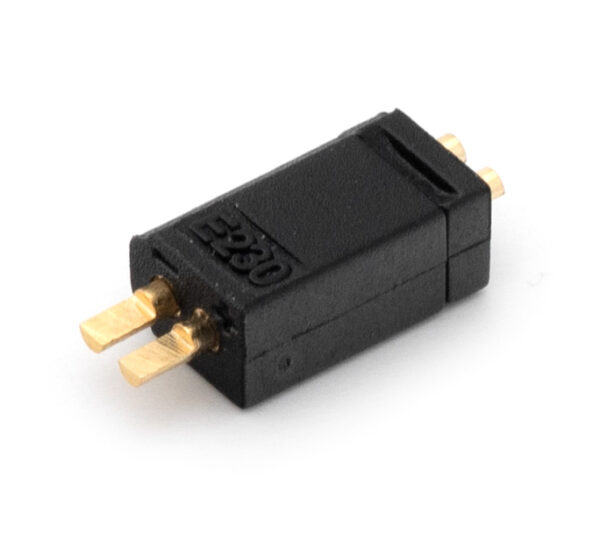

This is a small connector of “XT” type soldered to 100mm long 20AWG wires.
Specs:
- Wire length: 100mm
- Wire size: 20AWG
- E230 Connector pin diameter: 1.3mm
- E230 Connector pin spacing: 2mm

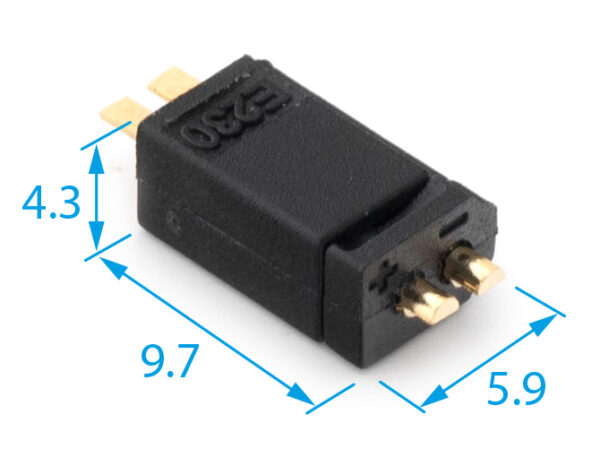

- E230 Connector length (assembled): 9.7mm
- E230 Connector width: 5.9mm
- E230 Connector height: 4.3mm
- Weight (total one pair): 3.3g
- Packaging: 1 pair
Additional information
| Weight | 0,011 kg |
|---|
