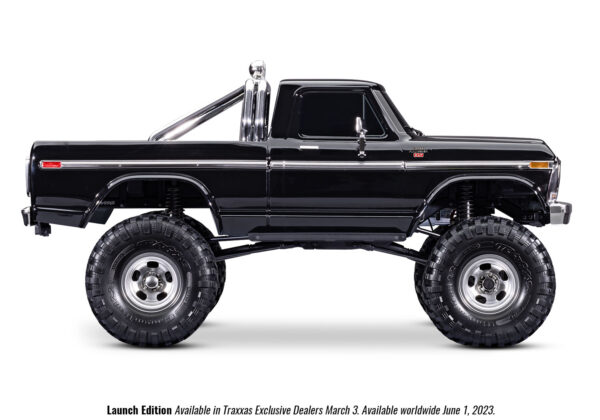

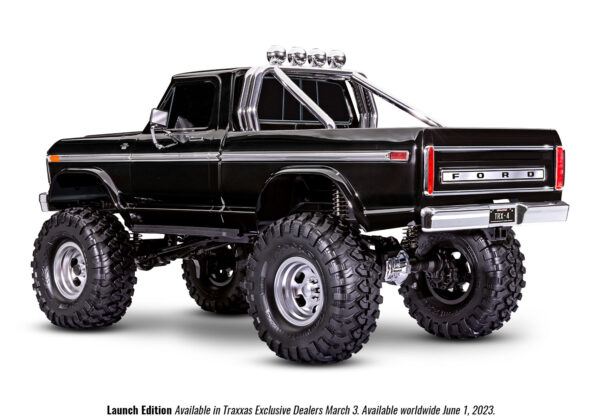

HIGH TRAIL EDITION

Large 2.2″ slotted mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before. The factory-installed Long Arm Lift Kit raises F-150 High Trail^™ Edition over an inch taller for superior ground clearance.

EXTENDED 336MM WHEELBASE

F-150’s extended steel ladder frame lengthens the wheelbase to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

CLIPLESS BODY MOUNTING

The clipless body’s hidden latching system gives F-150 High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, F-150’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.

• Officially Licensed 1979 Ford F-150^® Ranger XLT Body
  • Scale details: grille, chrome bumpers, side trim & mirrors, door handles, and wipers
  • LED-ready headlights, tail lights, and roll bar
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
• Clipless Body mounting
  • Clipless design for smooth body appearance
  • Rugged internal body cage for added rigidity
    • Body details mount directly to internal frame
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode^™ — 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set^® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
  • Two stage low voltage protection (LVD)
• Motor
  • Powerful Titan^® 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Factory-Installed Long Arm Lift Kit
  • Increases ground clearance over 1”
  • Maintains precise steering geometry
  • Accommodates oversize 2.2” wheels and tires

• Extended Wheelbase
  • Long 336 mm wheelbase for improved stability
  • Full-length 1.5 mm steel frame rails
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steel servo horn
  • Steering geometry corrected for bump steer

• Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Extended Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Extra-long aluminum bodies for greater articulation
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Oversize Wheels and Tires
  • 2.2” slotted mag wheels wheels with hub inserts
  • Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Transmitter
  • TQi^™ 2.4GHz 4-channel transmitter
  • Traxxas Link enabled
  • Telemetry ready #6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13ms frame rate and near-zero latency for responsive control
• Patented O-ring sealed watertight receiver box keeps the micro receiver
  dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating
