Kirjeldus

RAPTOR R STYLING. PRO SCALE® PERFORMANCE.

Name: Traxxas Ford F-150 Raptor R 4x4 VXL, Punane (ilma aku ja laadijata)
Brand: Traxxas
SKU: TRX101076-4-RED
Availability: InStock

The Traxxas Raptor R^™ is the newest member of the innovative Traxxas Pro Scale^® lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon^® brushless horsepower to faithfully capture the Raptor R^™ driving experience. Only Traxxas Pro Scale^® delivers both the exacting realism and unbeatable speed and durability performance drivers demand.

PRO SCALE DESIGN

Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R^™. The Traxxas Raptor R^™ stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. Velineon^® brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R^™ performance credentials to match its stunning looks.

EXTREME HEAVY DUTY UPGRADES

Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Raptor R’s driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.

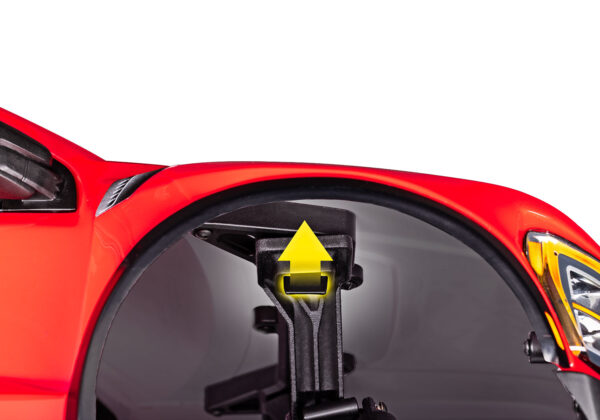

CLIPLESS BODY MOUNTING

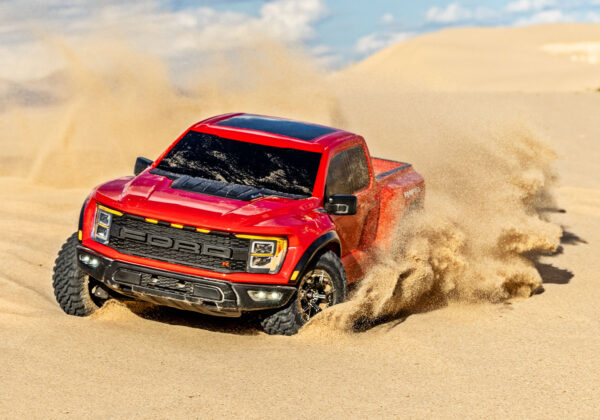

High-flying stunts and 60+mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

FEATURES

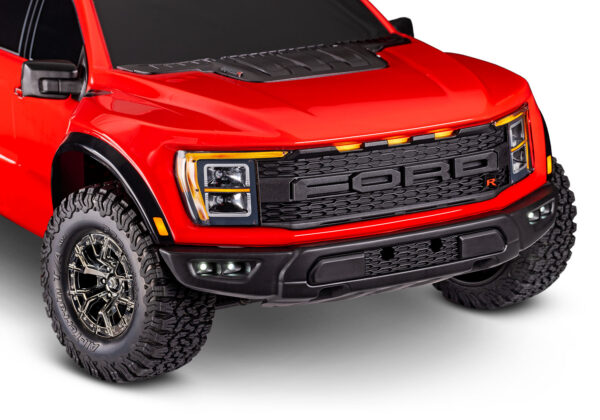

Officially Licensed Ford^® F-150^® Raptor R^™ Clipless Pro Scale^® Body

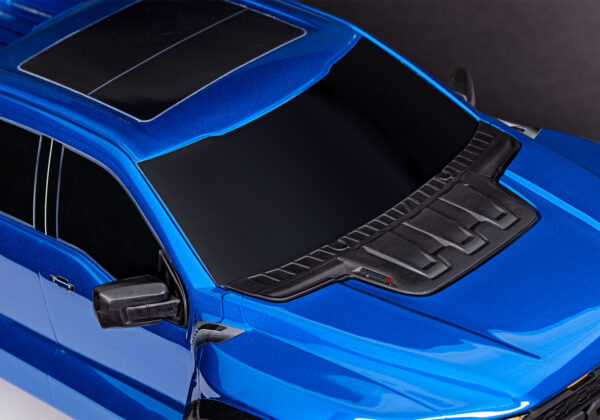

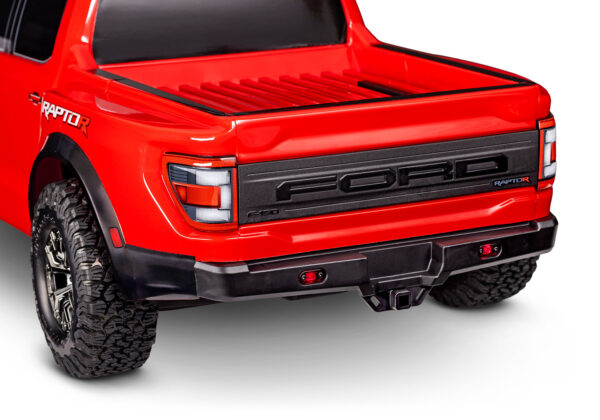

- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
Clipless Body Mounting
- Holds tight for intense action
- 5mm output shaft
- Quick and easy removal
- Smooth appearance with no body posts or clips

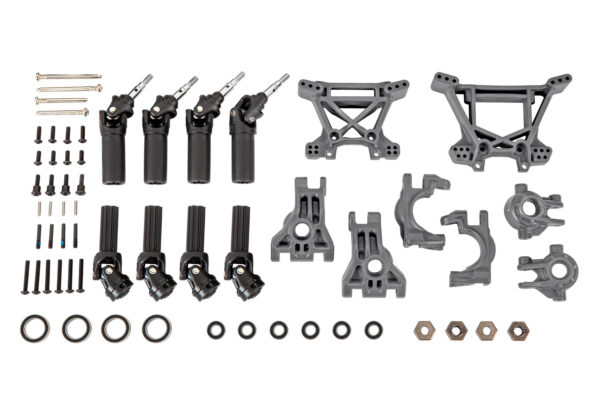

Extreme Heavy Duty Upgrade Kit Installed

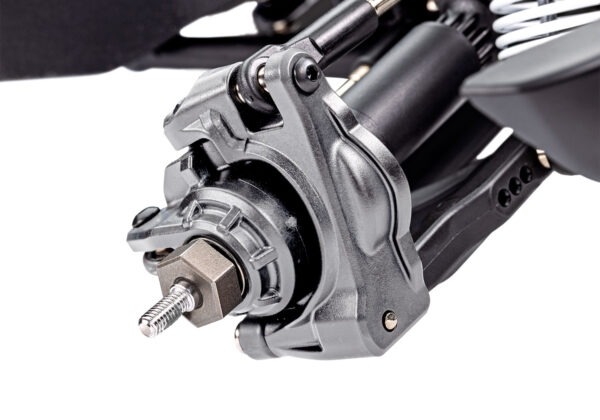

- Strengthened C-hubs, axle carriers, steering blocks, and shock towers

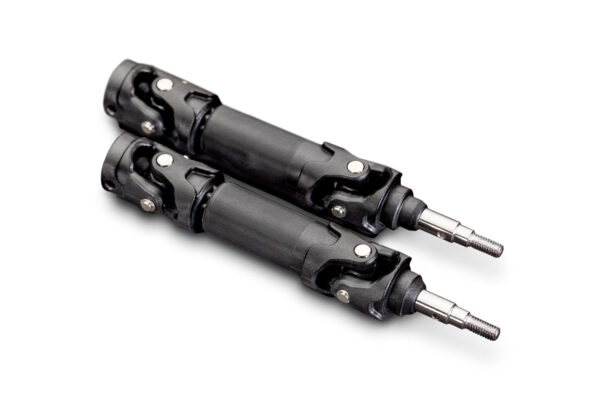

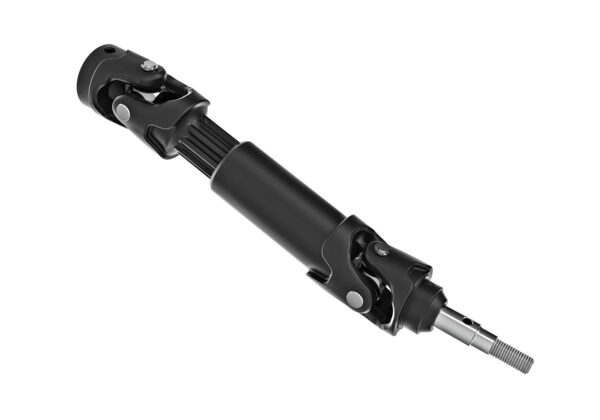

- Extreme heavy duty driveshafts
  - Oversize diameter
  - 6mm axles
  - Steel wheel hexes
VXL-3s^™ Waterproof Electronic Speed Control
- Cooling fan with large heat sink
- Three Programmable Drive Profiles
  - Sport Mode – Forward / Brake / Reverse
  - Race Mode – Forward / Brake
  - Training Mode^™ – 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Up to 60+ mph with 3s LiPo battery
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
TQi^™ 2.4GHz High Output Radio System
- TQi^™ 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control

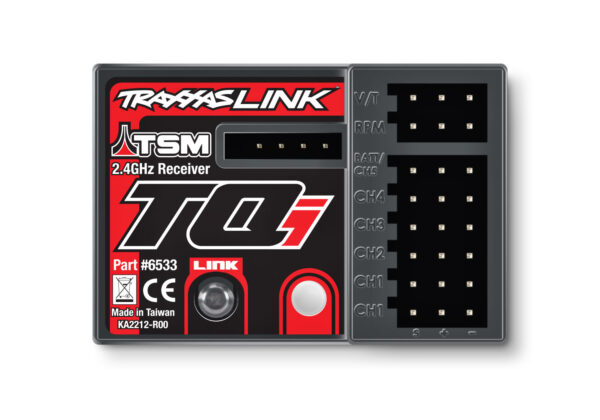

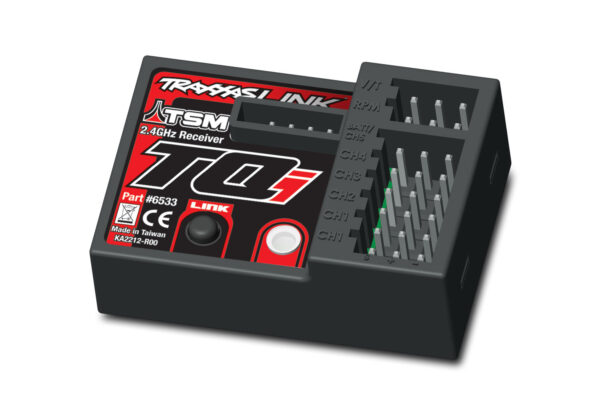

- 5-channel micro receiver (#6533) with fail-safe security

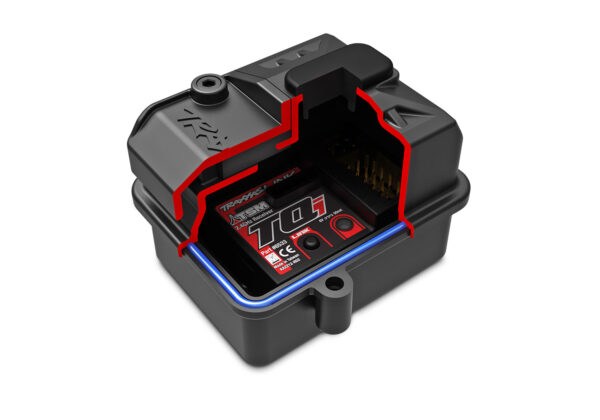

- Patented waterproof receiver box with easy-access plug

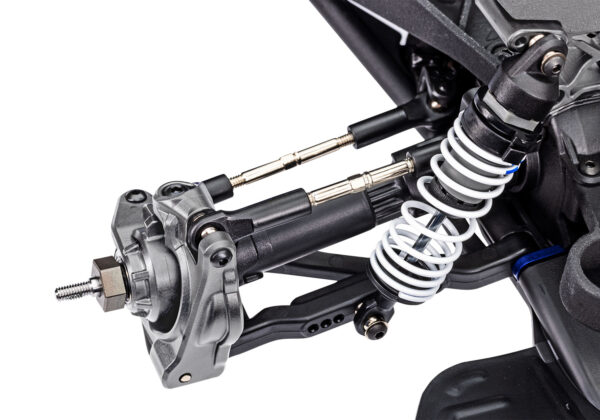

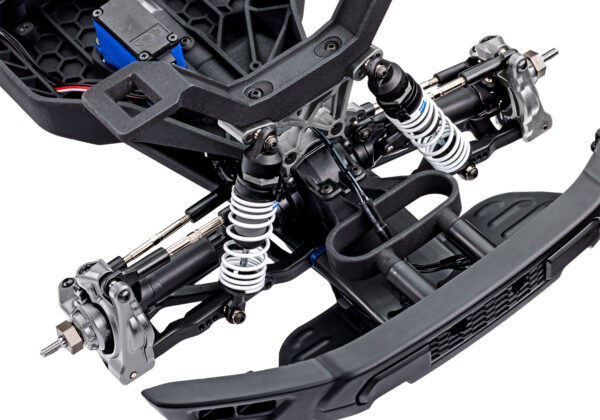

Suspension

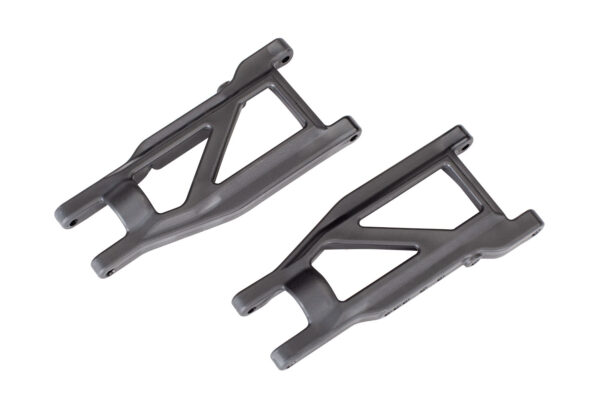

- Heavy duty suspension arms
- Adjustable 4 mm steel toe and camber links

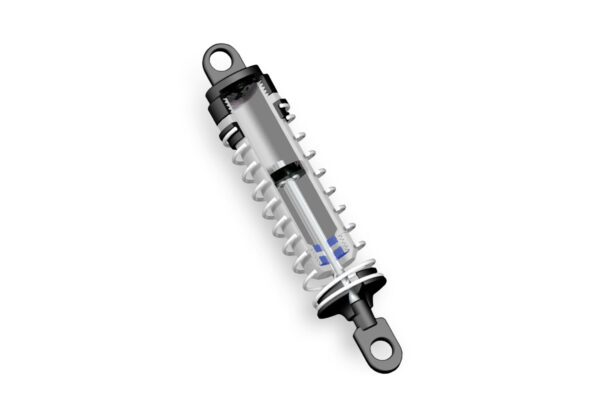

- Oil-filled Ultra Shocks
- White powder-coated progressive springs

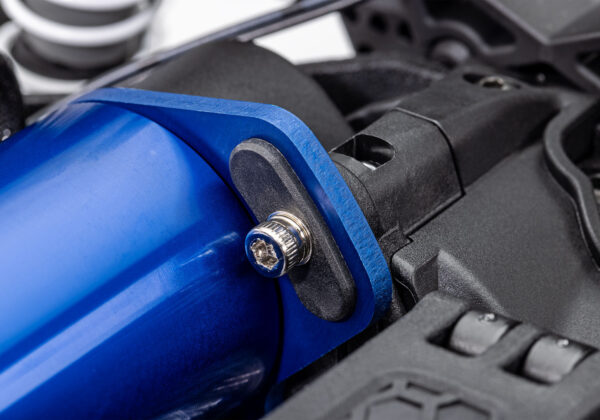

Velineon^® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish

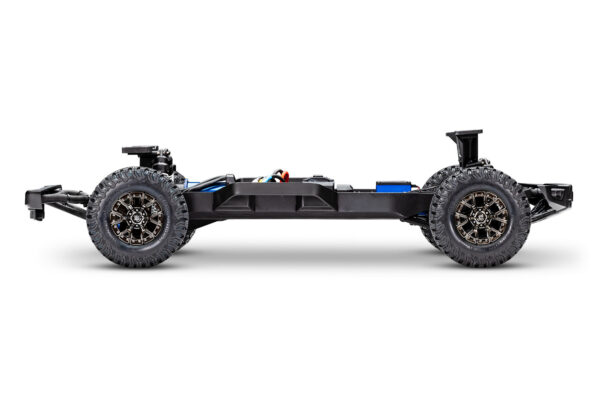

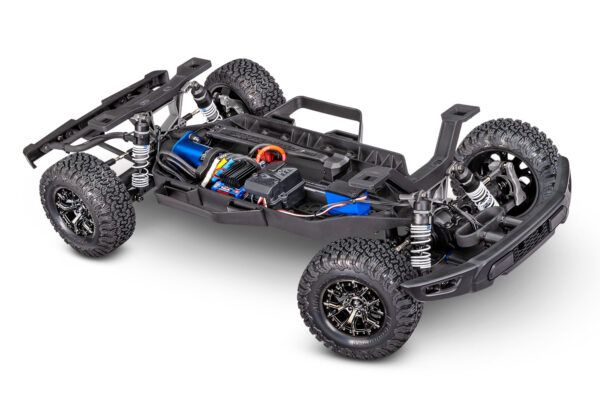

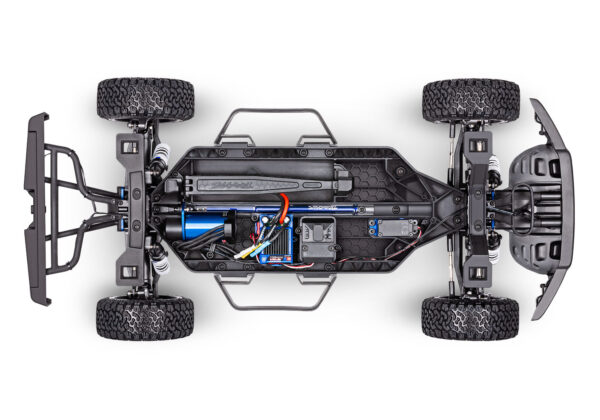

Chassis

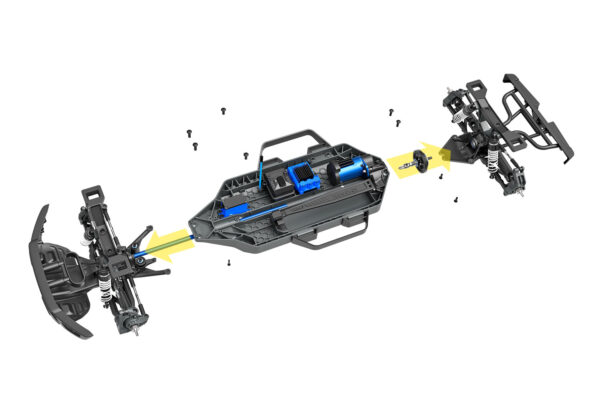

- Extended modular composite tub design
- Secure battery hold-down latch
- Side nerf bars for impact resistance
Steering
- Chassis-mounted #2075 servo

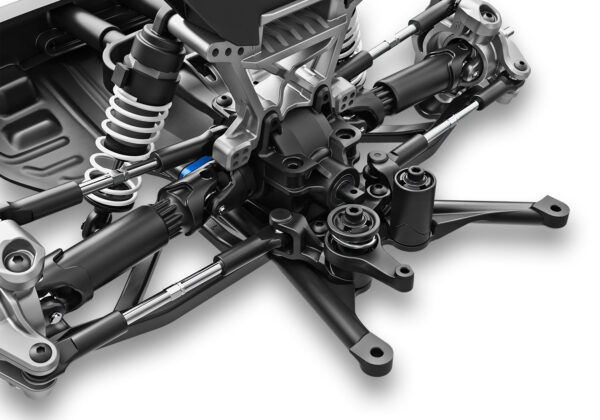

- Dual bellcrank design with integrated servo saver

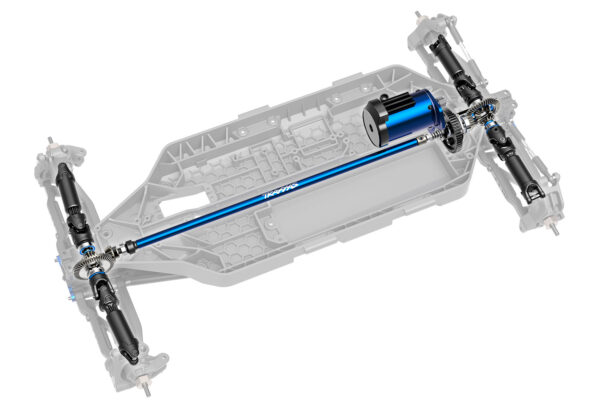

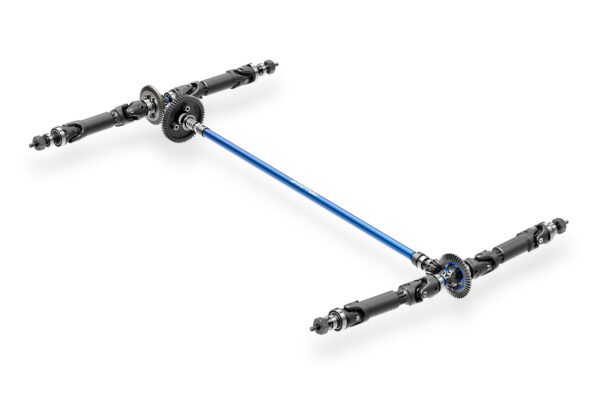

Drivetrain
- Full-time shaft-driven 4-wheel drive

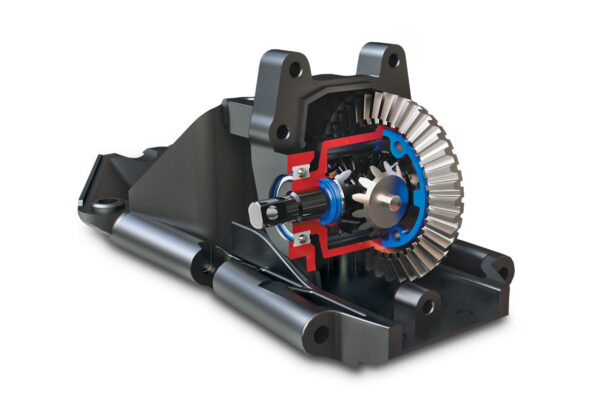

- Oil-filled steel gear front and rear differentials

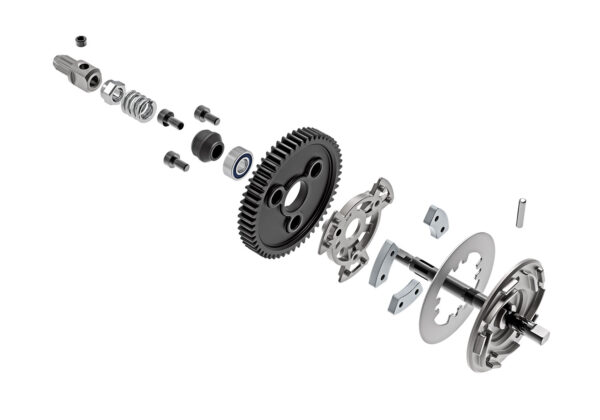

- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft

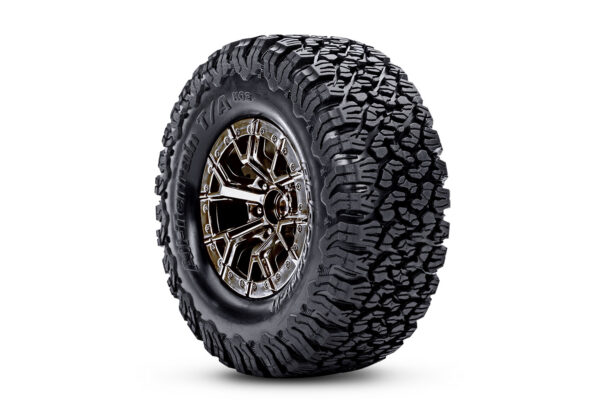

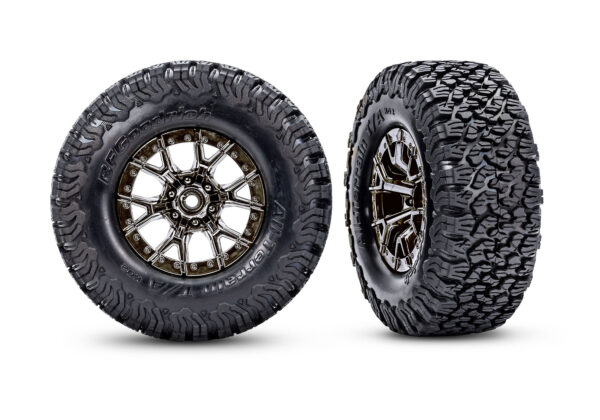

Wheels and Tires
- Licensed Ford^® replica option wheels
  - 2″ outer diameter, 3″ inner diameter

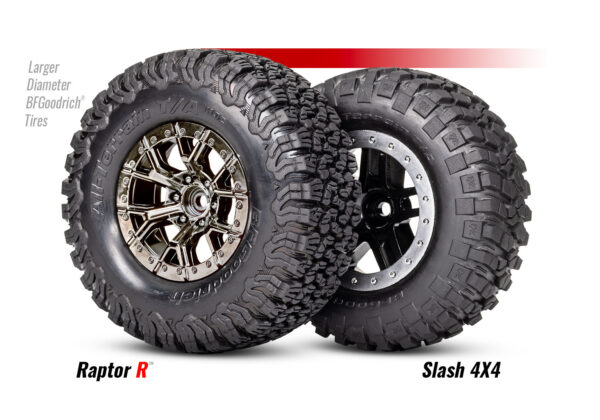

- Licensed BFGoodrich^® All-Terrain T/A^® KO2 tires
- Larger 114 mm diameter
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Specifications

Length:	24.98 inches (637mm)
Front Track:	11.63 inches (289mm)
Rear Track:	11.63 inches (289mm)
Ground Clearance:	1.38 inches (35mm) 2.05 inches (52mm) (center)
Weight (no battery):	6.05 pounds (2.74kgs)
Height (overall):	8.91 inches (226mm)

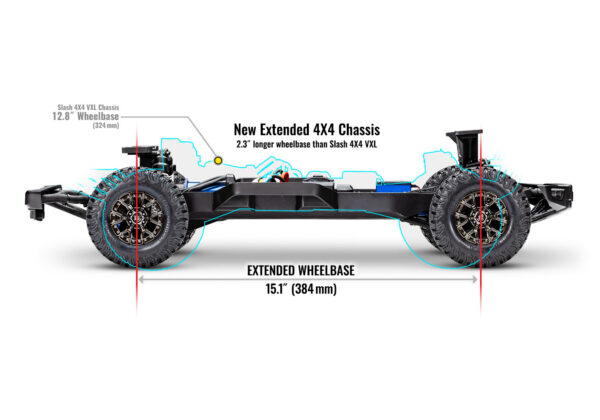

Wheelbase:	15.11 inches (384mm)
Shock Length (front):	3.45in (88mm) – Long
Shock Length (rear):	3.98in (101mm) – XX-Long
Tire Diameter:	4.5 x 1.9 inches (114mm x 48mm)
Wheel Diameter:	2.2 inches (56mm) (inner) 3.0 inches (76mm) (outer)
Speed Control:	Velineon^® VXL-3s (#3355R)
Motor (electric):	3500KV Velineon^® Brushless
Overall Drive Ratio:	37/13 ring/pinion gear ratio
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Pitch:	32
Chassis Structure/Material:	Composite tub
Drive System:	Shaft-driven 4WD
Steering:	Dual-bellcrank with integrated servo saver
Tires:	Licensed BFGoodrich^® All-Terrain T/A^® KO2 2.2″ pre-glued with foam inserts
Tire Diameter:	4.48 inches (114 mm) (front and rear)
Wheels (front/rear):	Licensed 2.2″ Ford^® Factory option wheel
Wheel Diameter:	2.2 inches (56 mm) outer 3.0 inches (76 mm) inner
Radio System:	2-Channel, TQi^™ 2.4GHz Transmitter with TSM^® receiver

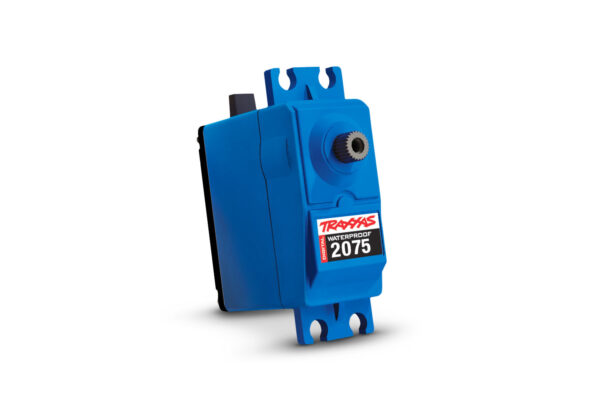

Servo:	2075 Waterproof Digital Servo (125oz-in torque)
Top Speed:	60+ MPH with optional included gearing and 3s LiPo
Skill Level:	1
Battery Compartment (L/W/H):	165mm (6.49″) x 50mm (1.95″) x 23/26mm (1.02″/0.90″)
Required Batteries:	4 “AA” (transmitter), Vehicle (2-3S LiPo)

Gear Pitch:	32
Chassis Structure/Material:	Composite tub
Drive System:	Shaft-driven 4WD
Steering:	Dual-bellcrank with integrated servo saver
Tires:	Licensed BFGoodrich^® All-Terrain T/A^® KO2 2.2″ pre-glued with foam inserts
Tire Diameter:	4.31 inches (114 mm) (front and rear)
Wheels (front/rear):	Licensed 2.2″ Ford^® Factory option wheel
Wheel Diameter:	2.2 inches (56 mm) outer 3.0 inches (76 mm) inner
Radio System:	2-Channel, TQi^™ 2.4GHz Transmitter with TSM^® receiver
Servo:	2075 Waterproof Digital Servo (125oz-in torque)
Top Speed:	60+ MPH with optional included gearing and 3s LiPo
Skill Level:	1
Battery Compartment (L/W/H):	165mm (6.49″) x 50mm (1.95″) x 23/26mm (1.02″/0.90″)
Required Batteries:	4 “AA” (transmitter), Vehicle (2-3S LiPo)

Karbist leiad

Kokkupandud Raptor R mudel koos värvitud kerega
TQi™ 2.4GHz raadiosüsteem
Juhendid, joonised ja lihtsamad tööriistad
AA patareid saatja jaoks

Juurde vajad

2S või 3S LiPo akut ja sobivat laadijat

Lisainfo

Kaal	4,05 kg
Mõõtmed	670 × 310 × 240 mm
