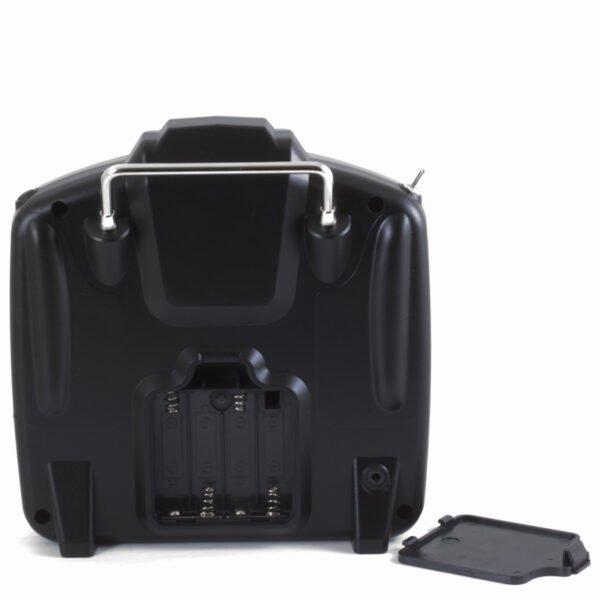

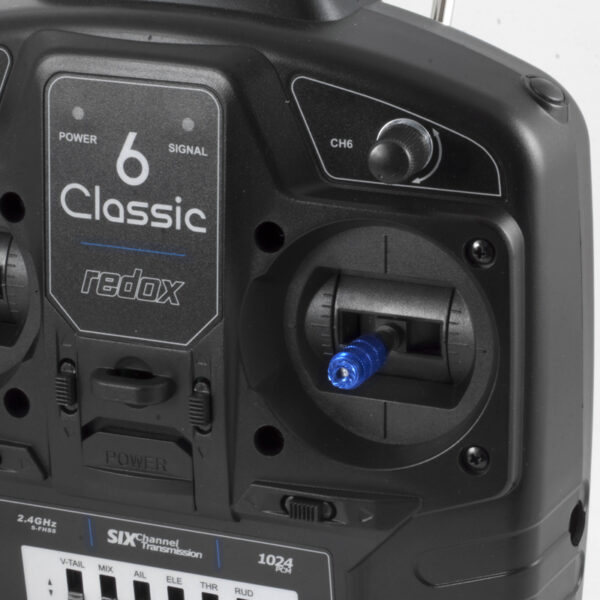

Redox Classic 6 is a universal, 6-channel digital RC transmitter, offered as a set with a compatible Redox RDX.6 receiver.
The transmitter features 5 proportional channels + 1 switch channel (0/1).
Additionally, built-in Elevon and Aileron mixers, Dual / Rates for channels 1, 2 and 4, and digital trims and reverses for channels 1-4.
The stick-type construction classifies it primarily as a transmitter intended for controlling flying models (airplanes, helicopters, drones), but it also can be successfully used for water models (boats, motorboats, yachts) as well as surface-models (cars).
The transmission range of the transmitter’s signal reaches 1500 meters (in an environment with no external interferences, with a dedicated long-range receiver).
Transmitter Specs:
Transmitter: Redox Classic 6
Number of channels: 6x PWM + 1x SBUS
Model type: Airplane, UAV, Helicopter, Car, Boat
Frequency/Modvulation: 2,4 GHz S-FHSS, FSK
Resolution: 1024 points
Operating voltage: 4,8 – 6 V
Power drain: ~120 mA
Weight: 434 g (approx. 525 g with batteries)
Power source: 4x AA NiMH/LR6 batteries (not included)
Low voltage alarm: yes

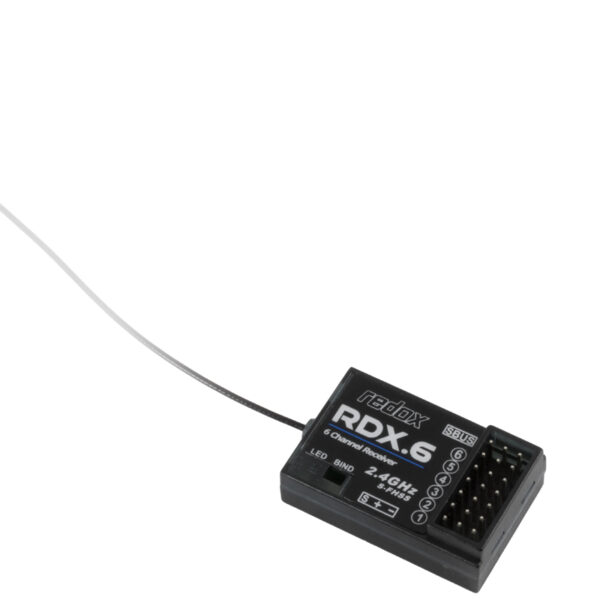

Receiver: Redox RDX.6
Number of channels: 6x PWM + 1x SBUS
Frequency/Modulation: 2,4 GHz S-FHSS, FSK
Operating voltage: 3,5 – 7,4 V (max. 2s LiPo)
HV servo compatible: yes
Weight: 7,2 g
Dimensions: 35 x 22,5 x 9(12) mm
Antenna lenght: 160 mm
