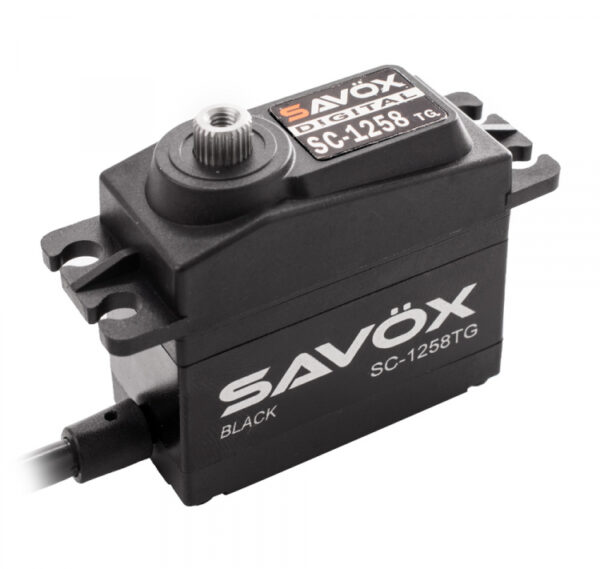

Savöx digital servo SC-1258TG-BE 12.0kg/0.08s (Black Edition)

The SC1258TG-BE combines leading edge technology with super high 12-bit (4096) resolution and an all black color for s stealth look in RC cars.

Features:

• Extremely strong titanium gears ensure long-life, durability and light weight
• Sleek black design with laser etching and a shorter 200mm black lead wire
• Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
• Aluminum middle case allows for cooler operating temperatures

Specifications:

• Torque @ 4.8V: 9.6kg/cm
• Torque @ 6V: 12kg/cm
• Speed @ 4.8V: 0.10 sec/60 deg
• Speed @ 6V: 0.08 sec/60 deg
• Dimensions L x W x H: 40.8 x 20.2 x 37.2mm
• Weight: 64g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
