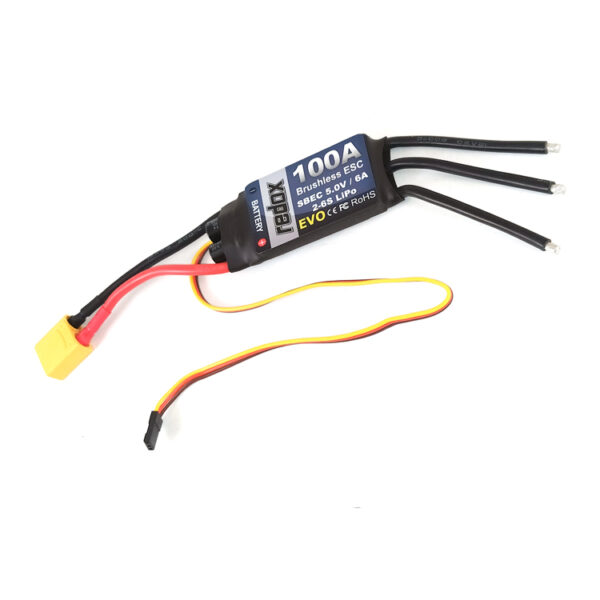

Redox 100A EVO Brushless ESC

Universal Electronic Speed Controller Redox EVO 100A for brushless motors designed for use in model airplanes and helicopters.

Programmed quickly with jumpers with a dedicated programming card (Redox Evo program card) or and using the throttle stick in a special programming mode (programming instructions included).

Programmable functions:

• Battery type: NiMH + NiCD / LiPo + LiIon (default)
• Low voltage cut-off method: Power reduction (default) / Immediate cut-off
• Voltage cut-off thresholds: low, medium, high (LiPo 2.8V / 3.0V / 3.2V / cell; NiMH 0% / 60% / 65% of start voltage)
• Timing: Auto/Low/High
• Throttle curve: soft (default) / linear
• Flight Mode (Governor): Off (Default) / Helicopter
• Motor rotation direction: regular CW (default) / reverse CCW
• Reset – brings back the factory default setup
• 2 brake modes: off – slow down / on – instant stop

Dane techniczne:

• Length: 81 mm
• Width: 36 mm
• Height: 14 mm
• Weight: 89g
• Working voltage: Lipo 2-6s (7.4 – 22.2V) or 5-18 NiXX cells (6 – 21.6V)
• max. current [A]: 120A
• Constant current [A]: 100A
• BEC: 5V/6A
• Connectors soldered: unsoldered cables (from the motor side) / XT-90 plug (battery side)
