BOOST 15 Brushless Motor & ESC Combo V2

72,90

1 laos

Tootekood: PI17011 Kategooria:
Kirjeldus

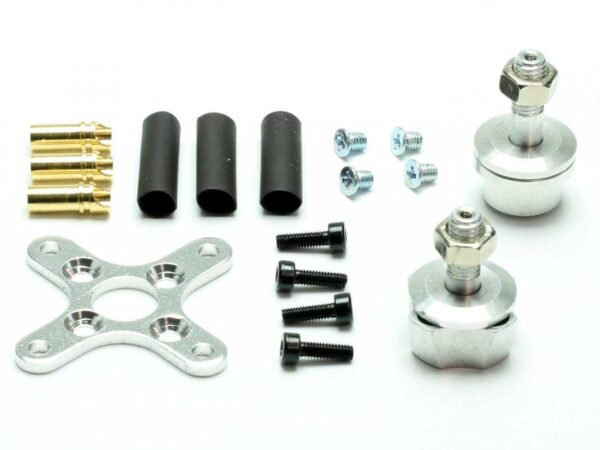

High-quality brushless motor BLDC (outrunner) for model aircraft. Easy front and rear attachment possible. Complete with mounting material and small parts.

Product features
* Optimized cooling thanks to the open design
* High quality ball bearings
* Finely balanced rotors
* High temperature resistant neodymium magnets

Area of application
3D flight models up to 350g
Aerobatic models up to 400g
Sailors up to 600g

Technical data
Dimensions = 28 x 30mm
Weight = 59g
Shaft Ø = 3.2mm (3.175mm)
LiPo / NiXX = 2 -3 / 6 -10
revolutions per volt/min. = 1000 rpm (KV)
Max. load (60 sec) = 12A

Propeller (recommended)
PI-CON 8×4, #C5746
PI-CON 9×6, #C5748

Special accessories (recommended)
Pichler programming box, # 15966

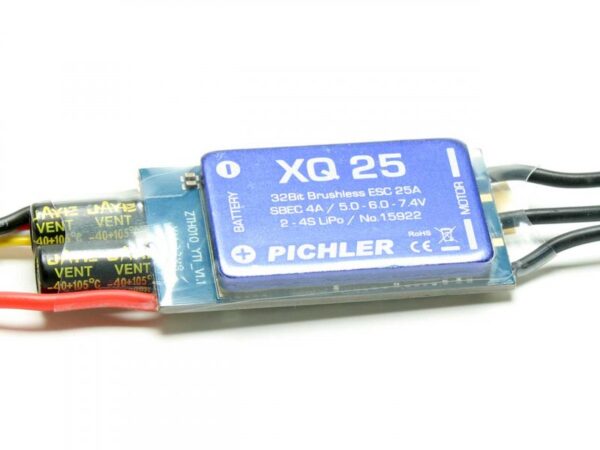

Bluetooth module ESC, # 15932

You can find an overview of all BOOST brushless motors here

Note Of course, other propellers (e.g. 3-blade or smaller sizes) than those specified here can also be used. Batteries with a different, e.g. higher capacity can also be used. Please ensure that the permissible currents (A) are not exceeded. We recommend our proven POWER WATTS 150, # C7282, for easy current measurement. A device that you need again and again and should not be missing from any equipment.

Lisainfo
Kaal 0,202 kg
Lähemalt Pichler
Pichler Company was originally founded in 1962 by Edmund Pichler being one of the first manufacturers of fiberglass products in germany. Back then, Pichler Motorcycle fairings were the key product which many of you will remember. Over the past decades, Pichler has sucessfully approached different markets with innovative products. Pichler Model divison was founded in 2002, today being one of germany´s leading hobby manufacturer and distributor.
