Tamiya VolksWagen Golf A2 Rally (MF-01X)

The Golf is one of Volkswagen’s most iconic cars. From its first appearance in 1974, the Volkswagen Golf has continued to develop and lead the worldwide compact car class, all the while also actively participating in motorsport. The second-generation model – the result of a full model change in 1983 – had a GTi sports model with a 1,781cc inline-4 engine. This assembly kit R/C model depicts that car, which met with success in global rally races, in 1986 becoming champion of its class. It features a lightweight and durable polycarbonate body, paired with the MF-01X chassis that parlays its shaft-driven 4WD into a great drive on road and flat dirt.

MF-01X – Compact 4WD At Home on a Range of Surfaces

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears.

The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Off-road capable M-05Ra chassis uprights and hub carriers are also included, and 8-spoke wheels are paired with rally block tires.

Specifications

• Length: 397mm, width: 170mm, height: 142mm
• Wheelbase: 239mm (L)
• Tire width/diameter (front & rear): 26/60mm
• Tread (front & rear): 138mm
• Monocoque frame
• Shaft-driven 4WD
• 3-bevel differential gears
• 2-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front & rear friction dampers
• Gear ratio = 9.5:1
• Type 540 motor
• Electronic Speed Controller (sold separately)

About the Model

• The classic lines of the Golf II are rendered artfully by the polycarbonate body.

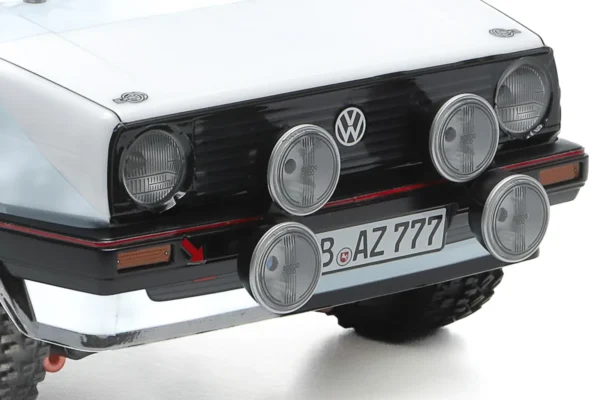

• Headlight cases and spotlights are separately molded parts that are compatible with separately sold LED light unit.

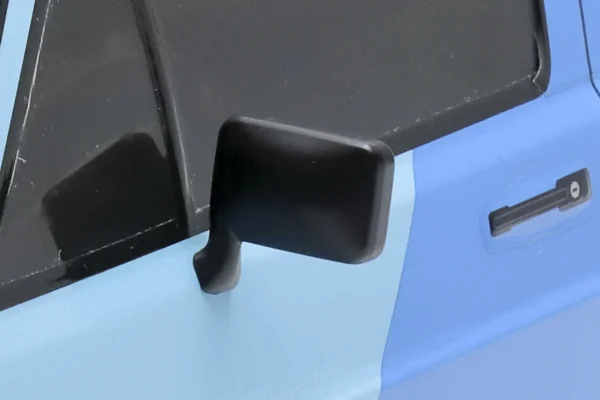

• Dedicated parts recreate the distinctive side mirrors, and stickers are used for the mirror surfaces.

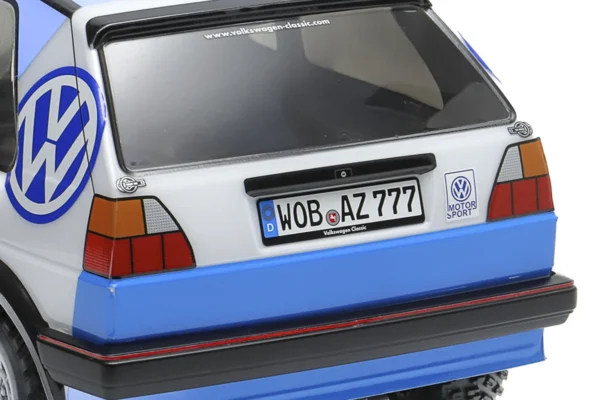

• Taillight cases are separate parts, and can be combined with separately sold LED light unit. The bumper is also a separate component.

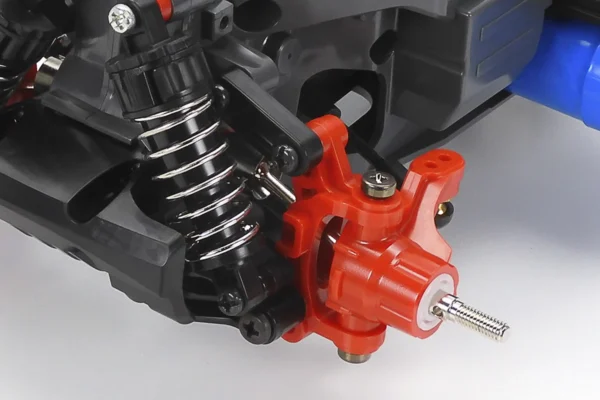

• Double wishbone front suspension. Uprights and hub carriers are off-road spec.

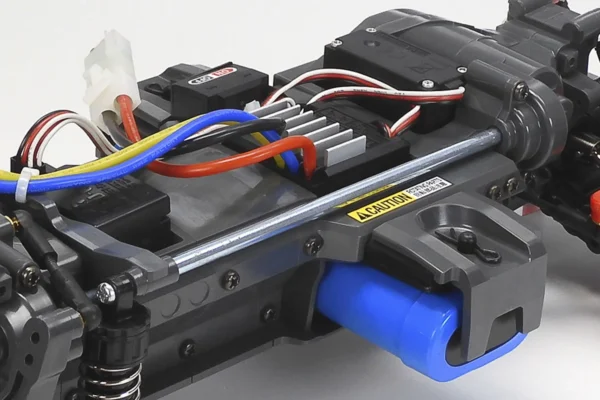

• A slimline three-piece monocoque forms the centerpiece of the MF-01X chassis, and the propeller shaft is positioned to the right.

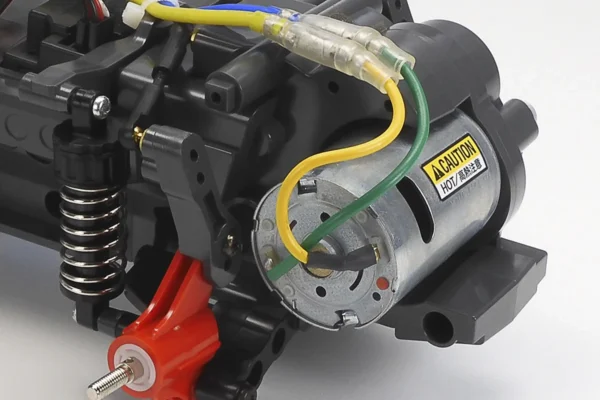

• The motor is planted in the 4WD chassis’ rear, with power going via gears to the rear wheels and propeller shaft to the front.

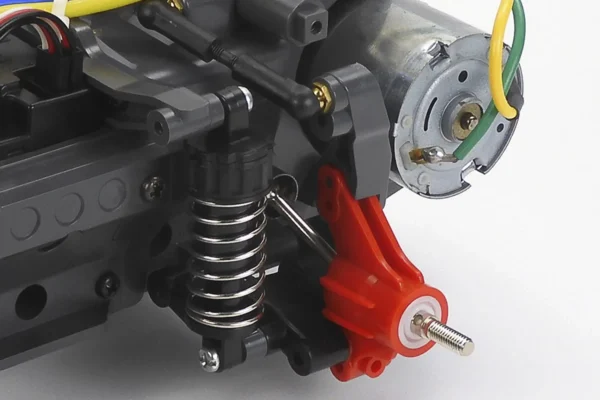

• Double wishbone rear suspension with its coil sprung dampers.

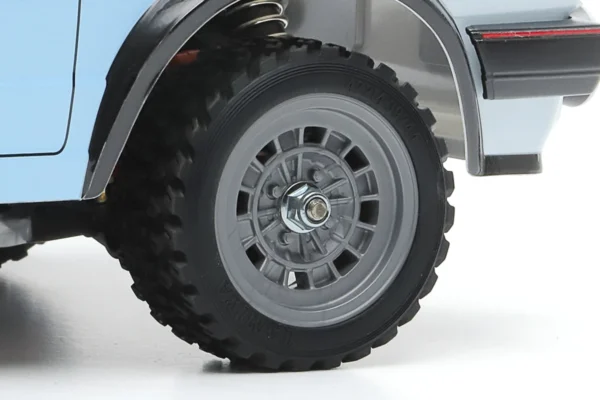

• Dish wheels are paired with rally block tires.

Please note! This is a true-to-scale 1/10 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Redox TX-ONE transmitter with RX-ONE receiver
• Tower Pro digitaalne servo MG958
• Hobbywing QuicRun WP 1060 ESC 60A (Brushed) 2-3S Car 1/10
• Redox NiMH battery 7,2V 3500mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 5000mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)
• Varta Super Heavy Duty R6 AA battery 4-pack

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya PS-1 White (alternatives: Hobbynox valge aerosool värv 150ml)
• Tamiya PS-31 Smoke (alternatives: Hobbynox suitsuhall aerosool värv 150ml)
• Tamiya TS-17 Aluminium (Gloss)
• Tamiya TS-29 Black (Semi Gloss) (alternatives: Tamiya Mini X-18 Semi Gloss Black)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
