Tamiya Toyota Celica GT-Four (ST165) (TT-02)

Meet the Champ

Rallying fans across the world enjoyed the exploits of the Celica GT-Four in 1990, as it won five times in global rally races on the way to a first Drivers’ title for a Japanese car. This R/C model assembly kit recreates that car in 1/10 scale, with a polycarbonate body capturing the streamlined form, and stickers included to capture not just various sponsor logos but even the red sections of the eye-catching livery.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings (the higher position is used with the Lancia Delta Integrale) and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

White dish wheels use racing radial tires.

Specifications

• Length: 450mm, width: 185mm, height: 130mm
• Wheelbase: 257mm
• Tire width/diameter: 27/66mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• ‘Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

About the model

• The streamlined silhouette of the car won great acclaim and is realistically captured by the model.

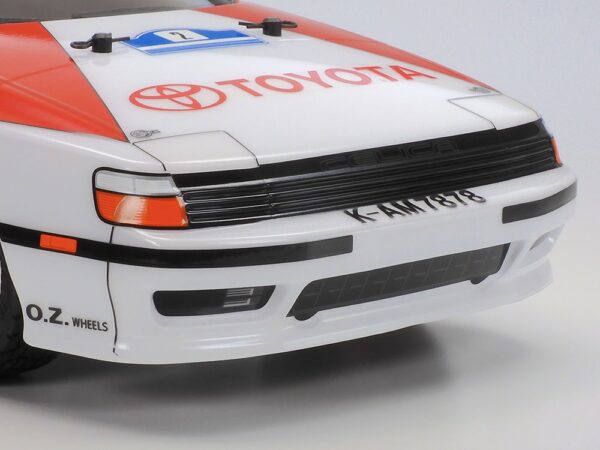

• There is plenty to admire at the front, with flat depictions of the headlights and grille.

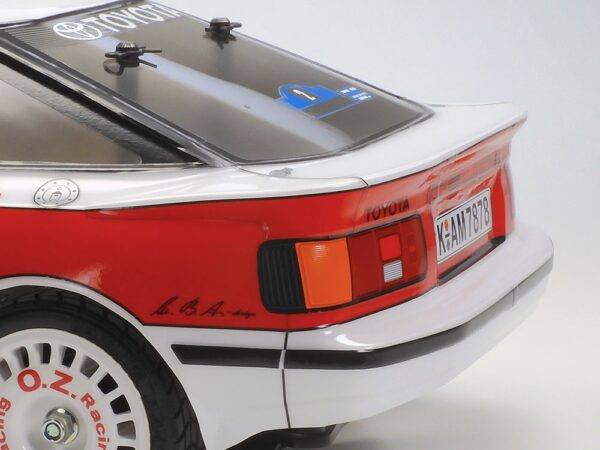

• At the rear the eye is drawn to the prominent spoiler. Stickers recreate taillights and license plate.
• White dish wheels are paired with treaded semi-pneumatic racing radial tires for great grip.

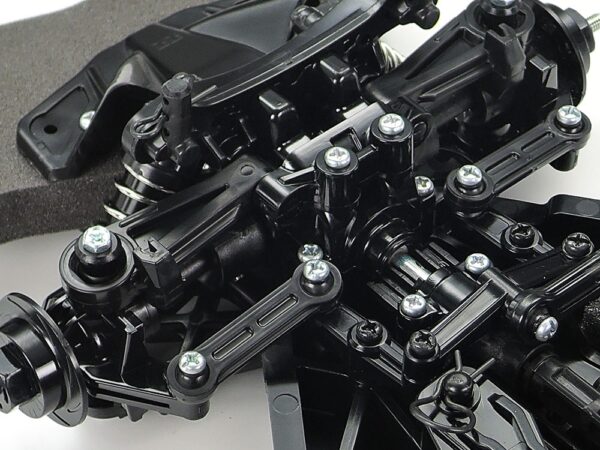

• Resin ball links in the steering linkage joints make for smooth, comfortable motion.

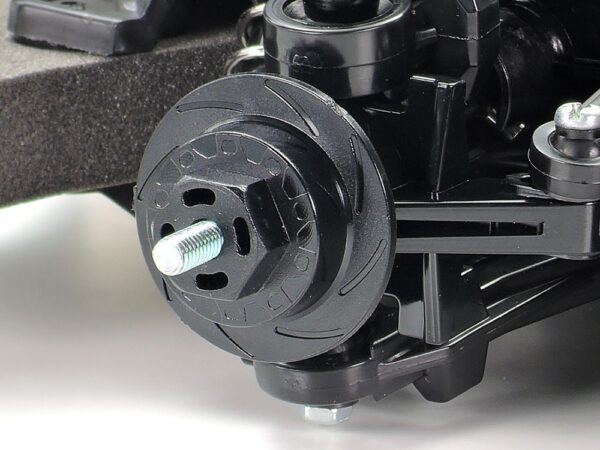

• Wheel hubs are shaped to look like brake discs.

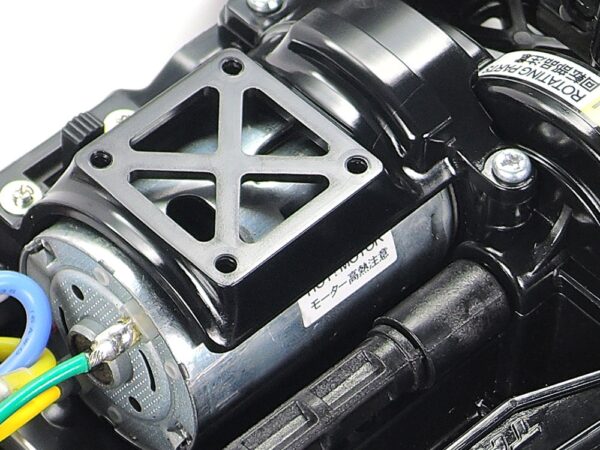

• Motor cover includes removable cooling duct (not attached in image).

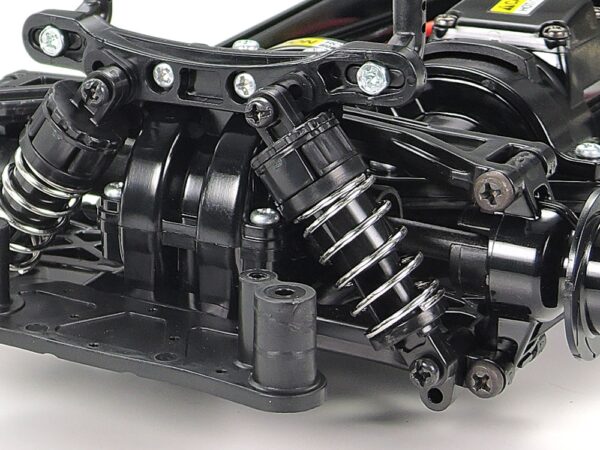

• This image gives a closer look at the rear double-wishbone suspension with friction dampers.

Please note! This is a true-to-scale 1/10 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Redox TX-ONE transmitter with RX-ONE receiver
• Tower Pro digitaalne servo MG958
• Hobbywing QuicRun WP 1060 ESC 60A (Brushed) 2-3S Car 1/10
• Redox NiMH battery 7,2V 3500mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 5000mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)
• Varta Super Heavy Duty R6 AA battery 4-pack

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya PS-1 White (alternatives: Hobbynox valge aerosool värv 150ml)
• Tamiya PS-5 Black (alternatives: Hobbynox must aerosool värv 150ml)
• Tamiya PS-31 Smoke (alternatives: Hobbynox suitsuhall aerosool värv 150ml)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
