Name: Traxxas 1/16 E-Revo RTR Roheline (koos aku ja 12V laadijaga)
SKU: TRX71054-1-GRN
Price: 239.90 EUR
Availability: BackOrder

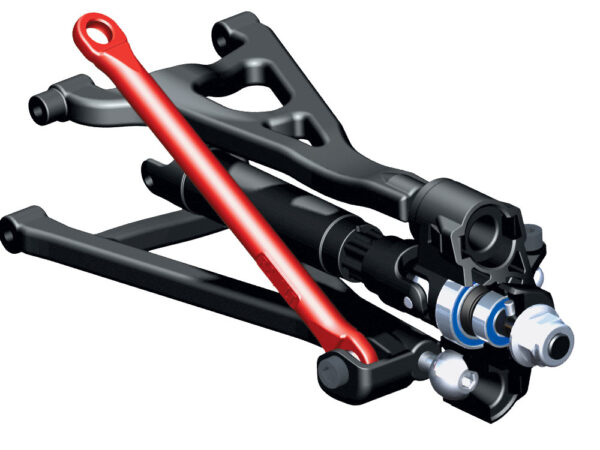

Race-winning, F1-inspired Revo® suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
XL-2.5 Waterproof Electronic Speed Control
- Innovative waterproof design
- 10-turn motor limit for 380 size motors
- Fully-proportional forward, reverse, and braking control
- Programmable with three drive profiles:
  - Sport Mode – Fwd / Brake / Rev
  - Race Mode – Fwd / Brake
  - Training Mode – 50% Fwd / Brake / 50% Rev
- EZ-Set® push-button setup
- Multi-color LED
- Thermal shutdown protection
- Efficient, low-loss MOSFET design
- High-capacity heat sink
- Smooth, high-frequency operation
- Easy installation in Traxxas models
Titan® 12T Modified Motor
Digital High-Torque Waterproof Micro Steering Servo
Waterproof, o-ring sealed receiver box
Sealed, silicone-filled differentials—an industry first in 1/16 scale
Torque-Control™ slipper clutch system
Heavy-duty CV-style driveshafts
Rubber-sealed ball bearings
External gear cover with easy slipper access
Installed Long Travel Rockers for maximum suspension articulation
Extended-wheelbase rear suspension arms (+10mm)
Rocker-actuated shocks provide true progressive damping and spring rates
Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
Fiber-composite monocoque chassis
Speed control and receiver are securely fastened to chassis
Integrated battery compartments with intake and exit cooling vents
Quick-release battery doors for fast pack changes
Pre-glued Talon™ Tires with foam inserts
Black-chrome Gemini wheels
Top Qualifier (TQ) Transmitter
- 2-channel transmitter
- High power output
- Servo reversing
- Electronic trim controls
- Low battery indicator
- Retractable antenna
- 50/50 or 70/30 trigger neutral adjustment
- Distinctive, ergonomic, contour grip
Full line of genuine Traxxas accessories available
1/16 E-Revo Brushed is backed by unparalleled Traxxas support and parts availability

1/16 E-REVO (#7105) SPECS

Length:		12.6″ (320mm)
Front Track:		9.4″ (239mm)
Rear Track:		9.4″ (239mm)
Weight:		44oz (1.24kg)
Height (overall):		4.6″ (117mm)
Wheelbase:		7.9″ (202mm)
Wheel Diameter		2.0″ (50.8mm)
Shock Length (front/rear):		48mm / 48mm
Front/Rear Tires (glued):		Talon™ 2.0″
Front/Rear Wheels:		2.0″ Gemini™ (black-chrome)
Electronic Speed Control:		Waterproof XL-2.5 ESC
Motor (electric):		Titan^® 12T 550
Transmission:		Heavy-Duty Single Speed
Gear Ratio (internal):		5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio:		15.75:1 (stock, out-of-box)
Differential Type:		Hardened Steel Bevel, Sealed
Gear Pitch:		48-Pitch
Chassis Structure/Material:		Molded Composite Nylon Monocoque
Brake Type:		Electronic
Drive System:		Shaft-Driven 4WD
Steering:		Bellcrank
Radio System:		TQ™ AM Radio
Top Speed:		20+mph
Skill Level:		1
Battery Tray Dimensions:		89mm x 35.5mm x 20mm
Included Batteries:		6-cell NiMh with Charger
Required Batteries:		None! Transmitter batteries FREE OF CHARGE!

XL-2.5 WATERPROOF ESC SPECIFICATIONS

Input Voltage:		4-8 Cells (4.8V – 9.6V DC)
Case Size:		26.5mm W x 46.5mm D x 22mm H
Weight:		33 Grams
Motor Limit:		10-turns**
On Resistance (@Trans):		0.008 Ohms
Reverse Delay:		None
BEC Voltage:		6.0V DC
Power Wire:		16 Gauge / 40mm
Input Harness Wire:		26 Gauge / 130mm
Motor Wires:		16 Gauge / 40mm
Transistor Type:		MOSFET
PWM Frequency:		2300 Hz
Thermal Protection:		Thermal shutdown
Profile selection:		Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV
Single-button setup:		Yes, Traxxas EZ-Set^®
**Properly geared
