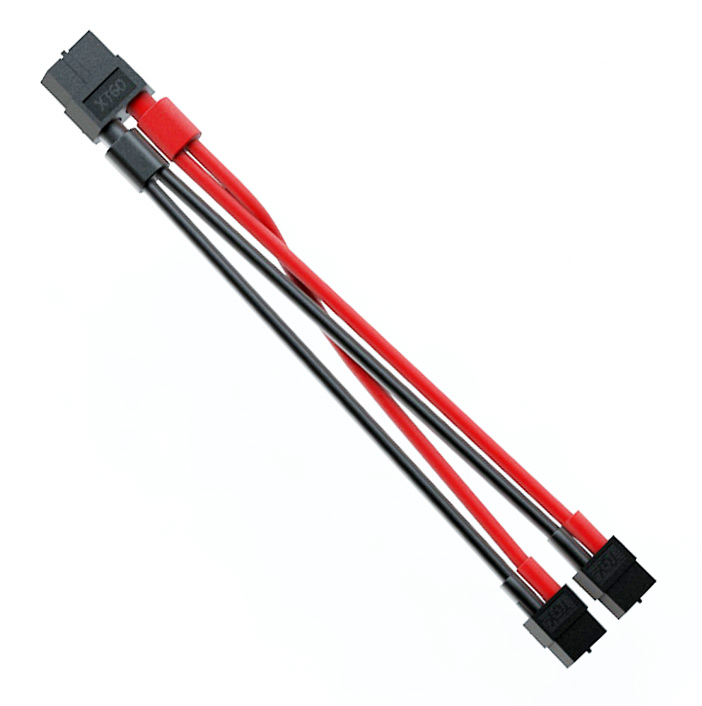

Parallel Charging Cable SkyRC T1000

The Parallel mode is available only for lithium batteries, which cannot be used for other types of batteries. At the time of its release (February 2023), this charging harness should only be used with the SkyRC T1000 Maestro charger.

1. Select the correct battery type (LiPo/LiFe/LiIon/LiHV)
2. Choose the option of Parallel charge
3. Adjust the charging current (20.0-35.0A is adjustable)
4. Start the program after setting up

Notice: Ensure that AC and DC power is not connected simultaneously. With the single port, charging power is 450W; with the dual ports, charging power is intelligently distributed. Before connecting the battery, turn on the charger.
