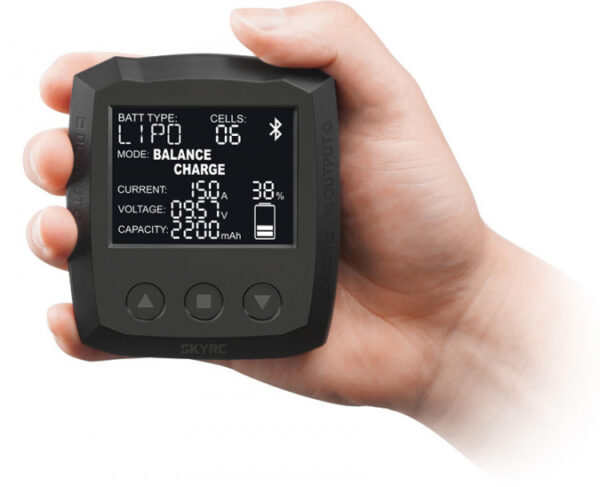

SkyRC B6 Nano Laadija 9-32VDC 15A 320W

The B6 Nano is a DC charger with 320W power that supports charging and discharging of various types of batteries including LiPo/LiFe/LiIon/LiHV and NiMH/NiCd (XT60 connector). It has multiple types of protection like high/low voltage protection and reverse protection etc.

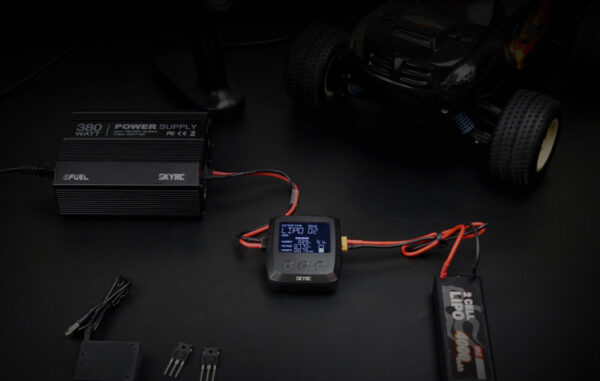

To take advantage of B6 nano’s full power capability, the power source should be 9-32V DC, and output power should be capable of 380W or higher. Low quality DC power source may damage your B6 nano charger. We recommend you to choose the SKYRC 380W Power Supply.

• TINY – Half height of iPhone X
• MIGHTY – 15A/320W

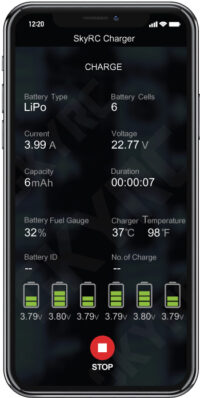

• APP – Smartphone Control
• Built-in Bluetooth

Buttons & Ports:
• External Port: 2-6S Balance Socket-XH, XT60 Battery Socket, DC Input
• Controls:Three buttons

Power:
• DC Input Voltage : 9-32V
• Charge Wattage: 320W
• Discharge Wattage: 5W

Battery:
• LiPo/LiIon/LiFe/LiHV: 1-6cells
• NiMH/NiCd: 1-15cells
• Pb: 2-20V

Battery Capacity Range:
• NiMH/NiCd: 100-50000mAh
• LiPo/LiIon/LiFe/LiHV:100-50000mAh
• Pb: 100-50000mAh

Charge Voltage:
• NiMH/NiCd: Delta-Peak detection
• LiPo: 4.18-4.25V/cell
• LiFe: 3.58-3.7V/cell
• LiIon: 4.08-4.2V/cell
• LiHV: 4.25-4.35V/cell

Discharge Cut-off Voltage:
• NiMH/NiCd: 0.1-1.1V/cell
• LiPo: 3.0-3.3V/cell
• LiFe: 2.6-2.9V/cell
• LiIon: 2.9-3.2V/cell
• LiHV: 3.1-3.4V/cell
