The UBEC uses a high-performance DC voltage regulator with switching module that draws its voltage from 3-14S LiPos. With it the regulator gives out 10A extremely stable or for a short amount of time 25A.Therefore this UBEC provides power for all kinds of RC modell devices. It is also suitable for fixed wing aircraft.
Features:
Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.
An all-metal housing design helps conduct heat and reduces electromagnetic interference.
Adjustable UBEC output voltage (6.0V / 7.4V / 8.4V) applicable for servos with different voltages.
Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
LED display to show the status of the UBEC.
Specifications
- Input Voltage: 3-14S LiPo
- Output Voltage: 6.0V / 7.4V / 8.4V (adjustable)
- Current cont./peak: 10A / 25A
- Dimensions: 55x25x12mm
- Weight: 35g
| Weight | 0,048 kg |
|---|
Related products

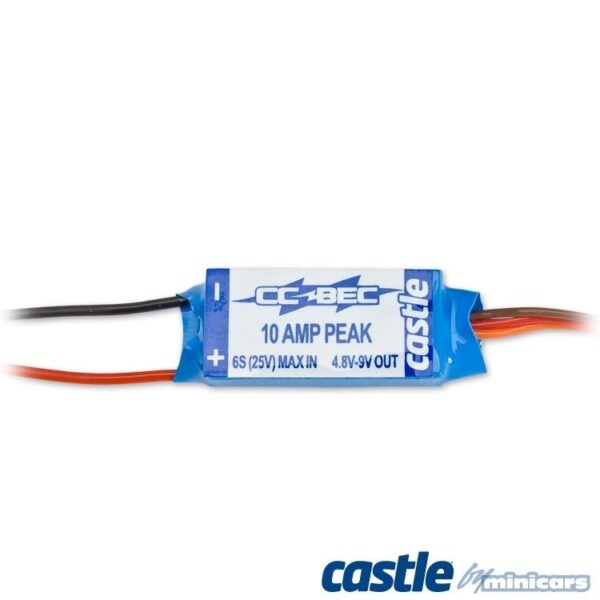

CC BEC 10A Peak 25V Max Input
