Hobbywing QuicRun WP 10BL30 ESC 30A (Brushless) Car 1/16

Easy Operation

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions

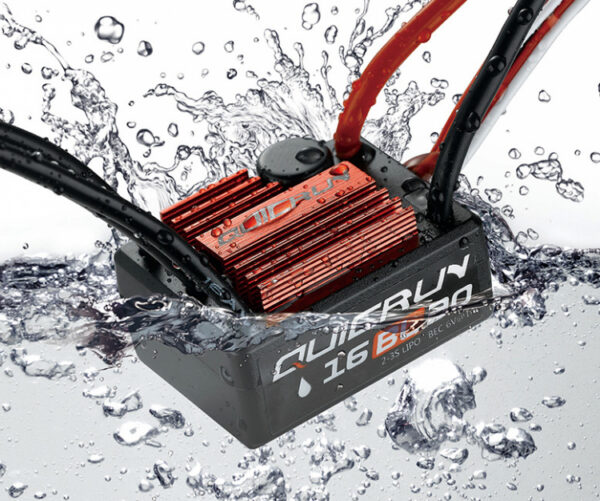

The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability

Reliable hardware combined with advanced software technology allows the QUICRUN WP- 16BL30 to not only provide high power output but also overload protection of the ESC circuit.

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Wide Application

This ESC is applicable to all-weather sport of 1/18th, 1/16th scale touring cars, buggies, trucks, and monster trucks.

Specs:

• Type: 1/16, 1/18, Brushless, Sensorless, WP
• Cont./Peak Current: 30A/180A
• Input: 2-3S LiPo/6-9 Cells NiMH
• BEC: Linear Mode: 6V/1A
• Input Wires: 16AWG-75mm
• Output Wires: 16AWG-75mm
• Input Connectors: Small-sized TAMIYA Connector (Mini Tamiya)
• Output Connecotors: 3.5 Gold Connector (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Programming:

• SET Button on ESC: Supported
• LED Program Box; Supported
• LCD Program Box: Not Supported
• WiFi Module: Not Supported
• OTA Programmer: Not Supported
• Program Port: Program/Throttle Wire
• Firmware Upgrade: Not Supported

Size & Weight:

• Size: 36x28x18mm
• Weight: 38g

Applications:

• Motors: Sensorless Brushless
• Vehicles: 1/16 & 1/18 – Touring Cars/Buggies/Trucks/Monster Trucks

Motor Limit:
For 2S Lipo or 6 cells NiMH:

• On-road: 2435-size or smaller motor with the KV<8000
• Off-road / Buggy / Monster: 2435-size or smaller motor with the KV<5000

For 3S Lipo or 9 cells NiMH:

• On-road: 2435-size or smaller motor with the KV<5500
• Off-road / Buggy / Monster: 2435-size or smaller motor with the KV<3500
