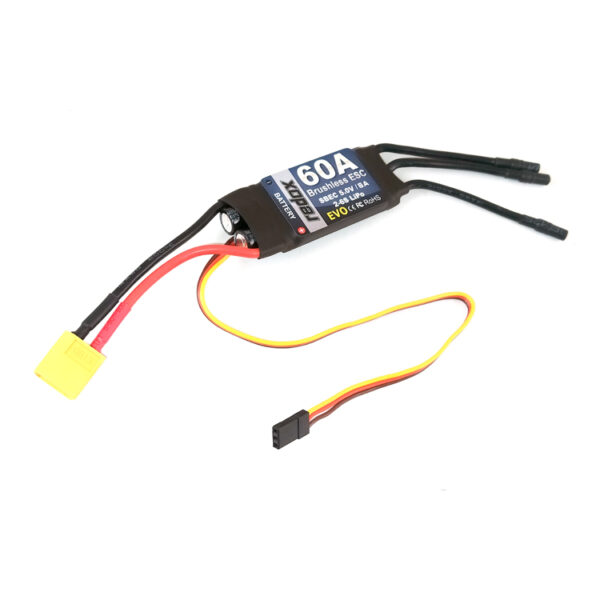

Redox 60A EVO Brushless ESC

Redox 60A EVO Brushless ESC

Universal Electronic Speed Controller Redox EVO 60A for brushless motors designed for use in model airplanes and helicopters.

Programmed quickly with jumpers with a dedicated programming card (Redox Evo program card) or and using the throttle stick in a special programming mode (programming instructions included).

Programmable functions:

• Battery type: NiMH + NiCD / LiPo + LiIon (default)
• Low voltage cut-off method: Power reduction (default) / Immediate cut-off
• Voltage cut-off thresholds: low, medium, high (LiPo 2.8V / 3.0V / 3.2V / cell; NiMH 0% / 60% / 65% of start voltage)
• Timing: Auto/Low/High
• Throttle curve: soft (default) / linear
• Flight Mode (Governor): Off (Default) / Helicopter
• Motor rotation direction: regular CW (default) / reverse CCW
• Reset – brings back the factory default setup
• 2 brake modes: off – slow down / on – instant stop

Dane techniczne:

• Length: 72 mm
• Width: 30 mm
• Height: 12 mm
• Weight: 57g
• Working voltage: Lipo 2-6s (7.4 – 22.2V) or 5-18 NiXX cells (6 – 21.6V)
• max. current [A]: 60A
• Constant current [A]: 80A
• BEC: 5V/6A
• Connectors soldered: 3x gold 3.5mm socket (from the motor) / XT-60 plug (battery side)
