Tamiya Scania 770 S 8×4/4 1/14 truck

Scandinavian Superstar

This R/C model assembly kit recreates the Scania 770 S 8×4/4, a double front-axle steering, double rear-axle drive eight-wheel heavy trailer head equipped with a 16.4-liter V8 turbo engine capable of 770hp, added in 2020 to the Swedish manufacturer Scania’s top-grade S Series. The model has a highly realistic body with interior details, and a chassis featuring a ladder frame with aluminum side channels. Power is delivered to the two rear axles via a 3-speed transmission, while the two front axles are steered by a single servo; the second axle is a lift axle which can be manually raised and lowered.

Specifications

• Length: 610mm, width: 196mm, height: 320mm, weight (without optional parts): approx. 4.2kg
• Wheelbase: 183mm + 109mm + 103mm
• Tread: 155mm (front), 138mm (rear, double tire)
• Chassis: aluminum & polycarbonate resin ladder frame
• Suspension: front/rear leaf spring rigid
• Caster angle (front/rear): 0°/0°
• Camber angle (front/rear): 0°
• Toe angle (front/rear): 0°
• Aluminum dummy dampers (front/rear)
• Dual rear axle drive
• 3-gear transmission (gear shifting operated via transmitter)
• Gear ratio = (1st gear) 32.49:1, (2nd gear) 17.66:1, (3rd gear) 10.66:1
• 3-bevel differential gears
• Type 540 motor
• Tire width/diameter: 30mm/85mm (front); 22mm/84mm (rear)

About the model

• The four-axle, eight-wheel 770 S cuts a highly impressive figure in 1/14 scale, with a detailed body.

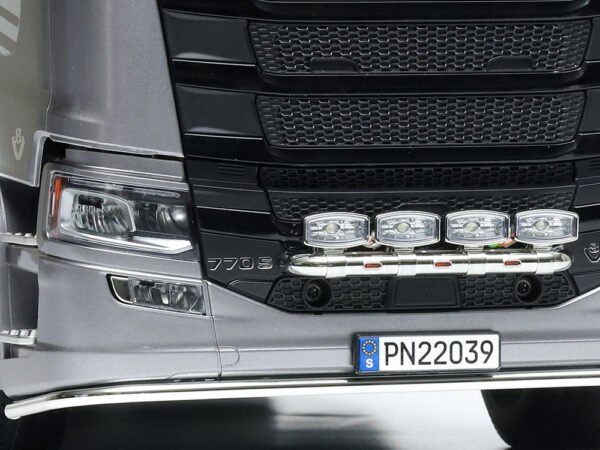

• The stylish front of the model features a grille bar and a low bar, with metal transfers for the emblems.

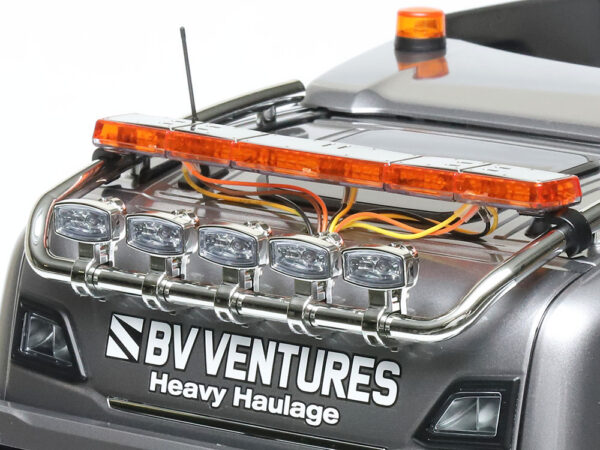

• A roof bar, light pods and warning light on the roof make for a really impressive finish.

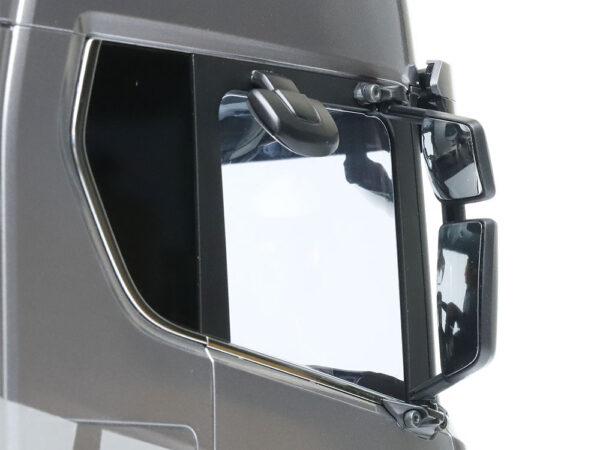

• Take a closer look at the kerb mirror, which of course is modelled accurately on that of the full size truck.

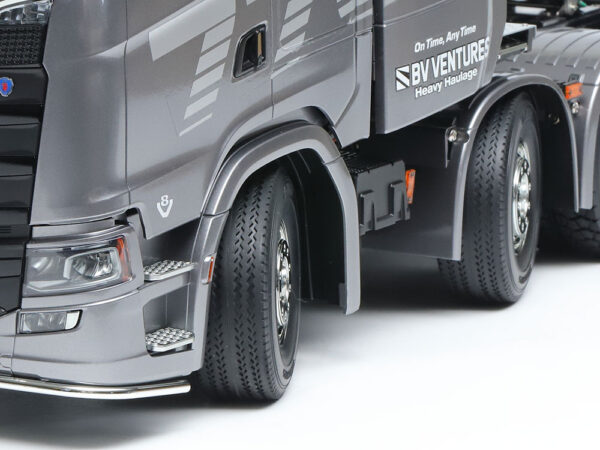

• Metal-plated recreations of the cab steps.

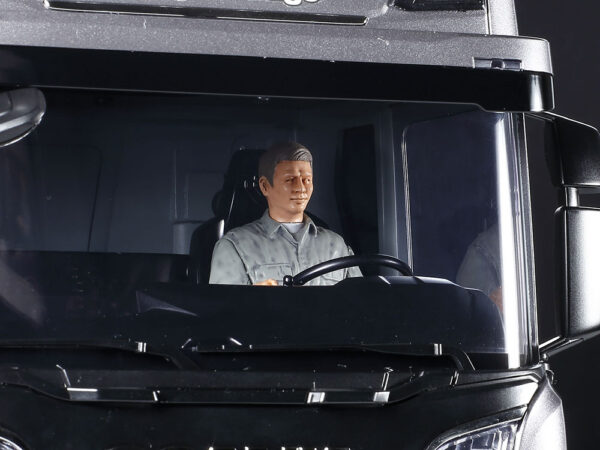

• A driver figure is included in the set to add that extra layer of realism.
• The back of the cab has a tower rack with depictions of fuel tank, air tanks, stowage cases and more.
• Fenders and mud flaps give an extra accent on the rear. Lights can be lit up using separately sold LEDs.

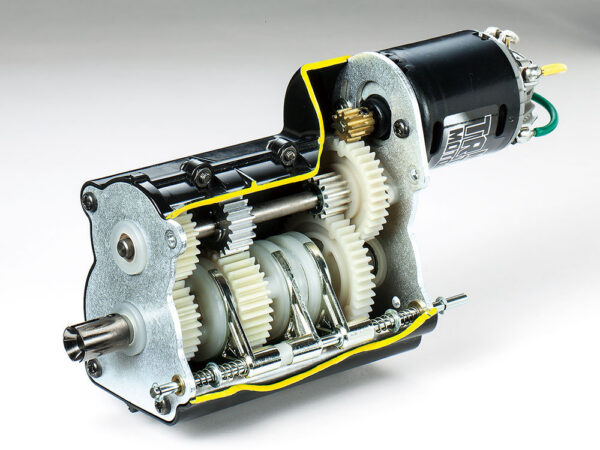

• Enjoy gear changes with the model’s three-speed transmission.
• The chassis employs a ladder frame with aluminum side channels. The two rear axles each have a differential gear.
• One servo is used to steer both the front axles, with the model recreating the slight difference in angle between them.
• The second axle is a lift axle that can be raised and lowered by hand.
• Trunnion design rear suspension is like that on a real truck, and employs plastic axles and metal leaf springs.
• Dual tires are used at the rear, and of course feature realistic tread.
• The battery pack is installed inside the tower rack behind the cab. Side panels are held in place by magnets.
• A coupler is included to allow connection of semi trailers from the extensive Tamiya line-up.
• Why not pair this model with a separately sold Tamiya Multi-Function Control unit, for super realistic lights, sounds and controls?

Please note! This is a true-to-scale 1/14 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Tower Pro digitaalne servo MG958
• Futaba Attack 4YWD Radio with R214GFE Receiver
• Hobbywing QuicRun WP 1060 ESC 60A (Brushed) 2-3S Car 1/10
• Redox NiMH battery 7,2V 5000mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 3500mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya TS-14 Black (Gloss) (alternatives: Tamiya Mini X-1 Black (Gloss))
• Tamiya TS-17 Aluminium (Gloss)
• Tamiya TS-29 Black (Semi Gloss) (alternatives: Tamiya Mini X-18 Semi Gloss Black)
• Tamiya TS-42 Light Gun Metal (Gloss)
• Tamiya TS-71 Smoke (Gloss)
• Tamiya AS-18 Helehall (IJA) spreivärv
• Tamiya Mini X-11 Chrome Silver (Gloss)
• Tamiya Mini X-18 Semi Gloss Black (alternatives: Tamiya TS-29 Black (Semi Gloss))
• Tamiya Mini XF-15 Flesh (Flat)
• Tamiya Mini XF-56 Metallic Gray (Flat)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
