Tamiya Scania R470 4×4 Highline 1/14 truck (Silver Edition)

Exciting Trucking Action

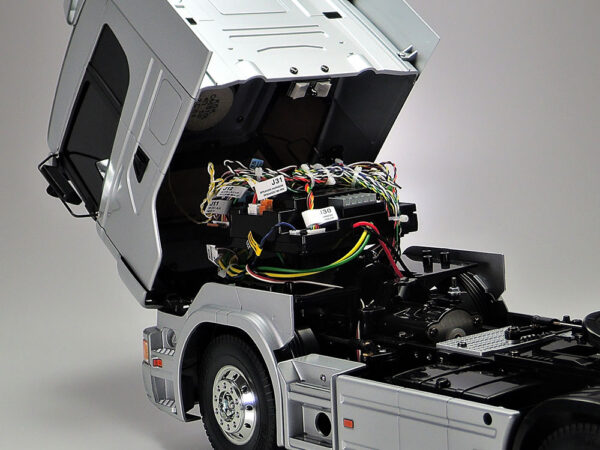

This R/C model assembly kit recreates the R470 Highline, which belongs to Swedish manufacturer Scania’s International Truck of the Year 2005 award-winning R Series. It is based upon a realistic chassis with aluminum side channels and plastic cross members, with metal leaf spring suspension and internally-sprung dampers. Assembly of the 3-speed transmission is effortless, and when used with a 4-channel transmitter, it will give fans full control of realistic gear shift operations. A beautifully reproduced cabin tilts forward separately from the fenders, just like the actual truck, and the interior and exterior of the fenders themselves have also been accurately modelled for the most realistic look possible.

Pre-Painted Body

A painted body saves you plenty of preparation time – components such as the cab, roof, spoiler, bumper, side skirts and front fender come painted in aluminum silver, with a clear urethane topcoat for a superb finish. Assemble the parts, paint up some smaller details like window frames, and the body will be ready!

Specifications

• Length: 452mm
• Width: 187mm
• Height: 293mm
• Weight (without options): Approx. 3.2kg
• Wheelbase: 272mm
• Tread: 156mm (Front), 138mm (Rear)
• Chassis: Aluminum & Polycarbonate Resin Ladder Frame

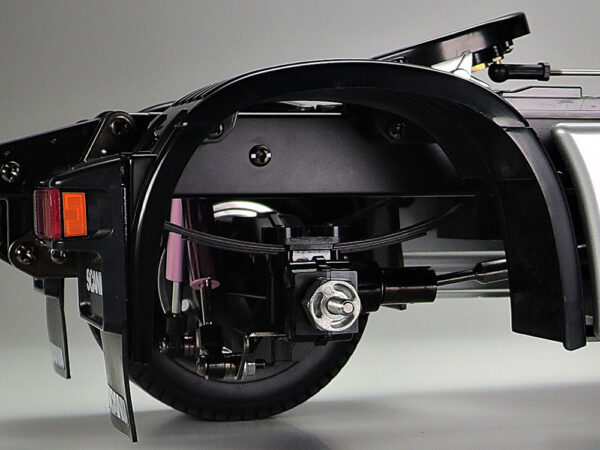

• Suspension: Front/Rear Leaf Springs
• Caster Angle: 0°/0°(Front/Rear)
• Camber Angle: 0°(Front & Rear)
• Toe Angle: 0°(Front & Rear)
• Dampers: Aluminum Dummy Dampers (Front & Rear)
• Drivetrain: Rear Wheel Drive

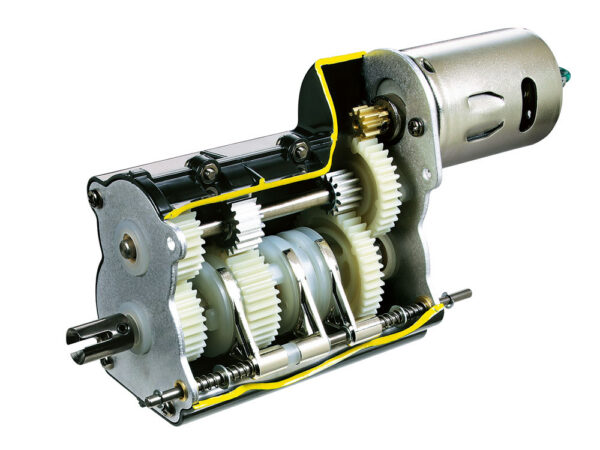

• Transmission: 3-gear transmission (gear shifting operated via transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff. Gear: 3-bevel diff
• Motor: Type RS540

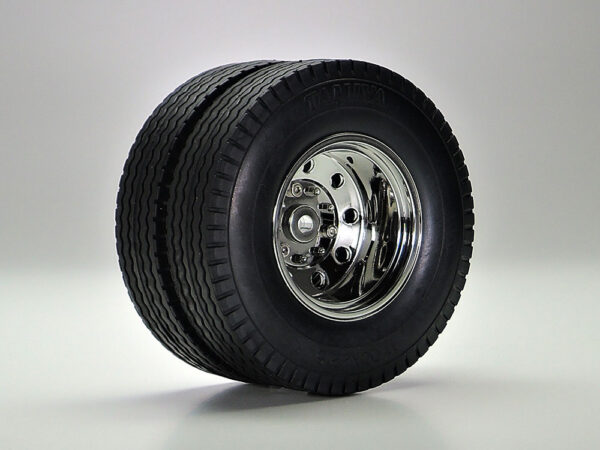

• Tire Width: 22mm (Front & Rear)
• Tire Diameter: 83mm (Front & Rear)

Please note! This is a true-to-scale 1/14 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Tower Pro digitaalne servo MG958
• Futaba Attack 4YWD Radio with R214GFE Receiver
• Hobbywing QuicRun WP 1060 ESC 60A (Brushed) 2-3S Car 1/10
• Redox NiMH battery 7,2V 5000mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 3500mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya TS-17 Aluminium (Gloss)
• Tamiya TS-29 Black (Semi Gloss) (alternatives: Tamiya Mini X-18 Semi Gloss Black)
• Tamiya TS-42 Light Gun Metal (Gloss)
• Tamiya AS-2 Helehall (IJN) spray paint
• Tamiya Mini X-11 Chrome Silver (Gloss)
• Tamiya Mini X-26 Clear Orange
• Tamiya Mini X-27 Clear Red (Gloss)
• Tamiya Mini X-32 Titanium Silver (Gloss)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
