Tamiya Scania R620 6×4 Highline 1/14 truck

Scintillating realism

Scania is a world-famous manufacturer of large trucks and buses, and this is an R/C model of the 620hp V8-powered 3-axle R620 6X4 Highline, the flagship model of their 2005 International Truck of the Year-winning R-Series range. The characteristic styling of the truck’s body is reproduced down to the smallest detail. The cabin tilts forward just like the actual truck and the included grille mesh and metal transfer emblems further enhance the realism look of the truck. The model features a ladder frame chassis with aluminum channels, 3-speed transmission, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Exterior details such as side panels, fuel tanks, and rear fenders provide the finishing touches. Kit-included coupler enables linkage with any of Tamiya’s currently available 1/14 scale trailers, and the R620 is compatible with a wide range of Tractor Truck Option Parts as well.

Specifications

• Length: 520mm
• Width: 187mm
• Height: 293mm
• Weight (with battery and R/C equipment): 3.7kg
• Wheelbase: 237mm + 103mm
• Tread (front/rear): 156mm/138mm
• Aluminum & polycarbonate ladder frame
• Leaf spring rigid suspension
• Caster: 0°
• Camber: 0°
• Toe angle: 0°
• Aluminum dummy dampers
• Dual rear axle drive
• 3-speed transmission
• Gear ratios = 32.49:1 (low); 17.76:1 (second): 10.66:1 (top)
• 3-bevel differential gears
• Type 540 motor
• Tire width/diameter: 22mm/83mm

About the model

• White LEDs accurately recreate the HID lights on the actual truck.

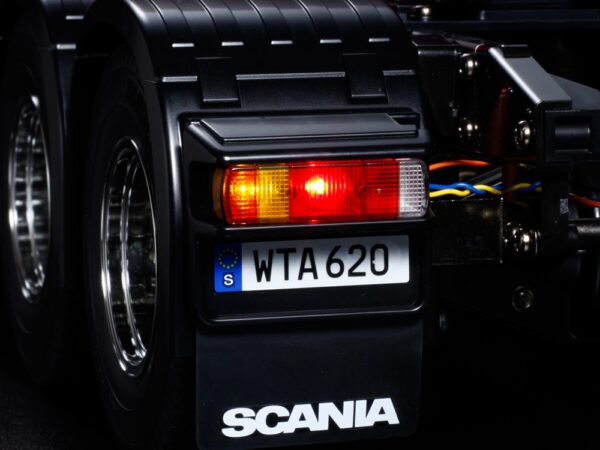

• Red and orange LEDs allow drivers to operate turn signal and brake light operations.

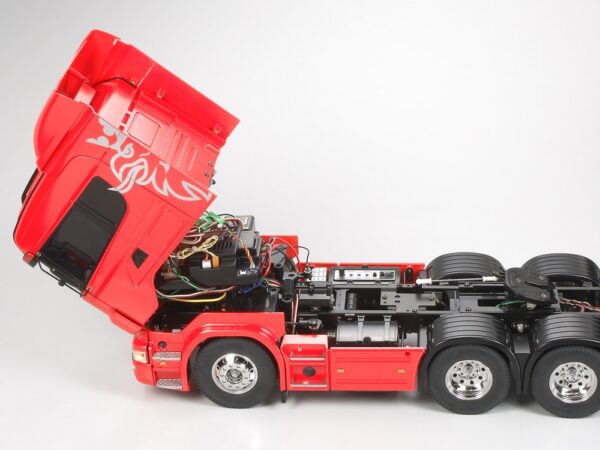

• Cabin tilts forward separately from the fenders, just like the full-sized truck.
• MFC-01 provides sound effects for attaching/detaching any of the currently available trailers.

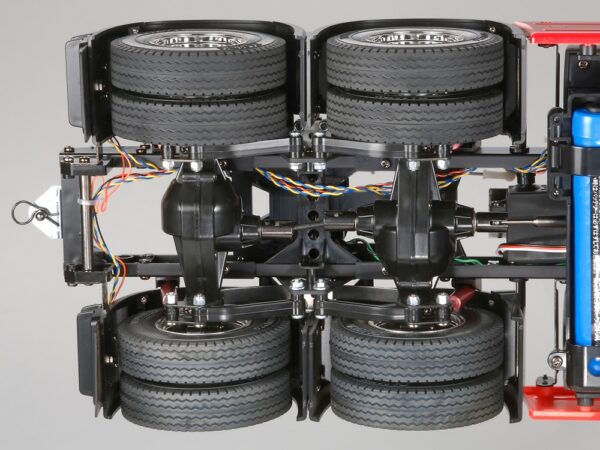

• Both rear axles are individually equipped with a differential for smooth cornering performance.

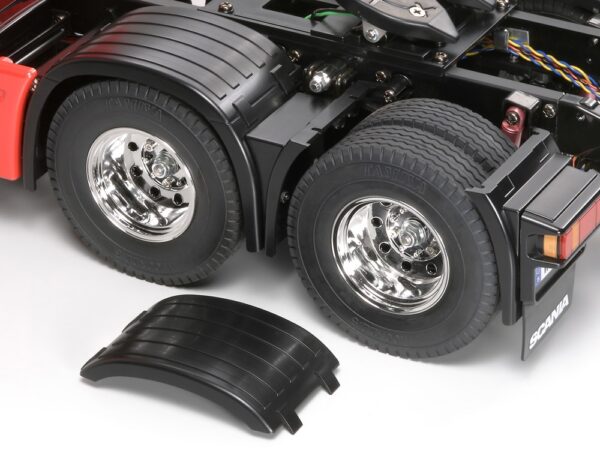

• The fenders which cover the rear wheels are unique to European trucks and feature 3-piece construction, just like the actual parts.

Please note! This is a true-to-scale 1/14 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Tower Pro digitaalne servo MG958
• Futaba Attack 4YWD Radio with R214GFE Receiver
• Hobbywing QuicRun WP 1060 ESC 60A (Brushed) 2-3S Car 1/10
• Redox NiMH battery 7,2V 5000mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 3500mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya TS-17 Aluminium (Gloss)
• Tamiya TS-29 Black (Semi Gloss) (alternatives: Tamiya Mini X-18 Semi Gloss Black)
• Tamiya TS-38 Gun Metal (Gloss)
• Tamiya TS-39 Mica Red (Gloss)
• Tamiya AS-2 Helehall (IJN) spray paint
• Tamiya Mini X-11 Chrome Silver (Gloss)
• Tamiya Mini X-18 Semi Gloss Black (alternatives: Tamiya TS-29 Black (Semi Gloss))
• Tamiya Mini X-26 Clear Orange
• Tamiya Mini X-27 Clear Red (Gloss)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
