Tamiya Ford Escort Custom 1998 (TT-02)

Custom Classic

This R/C model assembly kit recreates a three-door hatchback Ford Escort Mk.6 with customizations such as blister fenders, front spoiler and rear wing. The powerful form is captured by a lightweight and durable polycarbonate body, and stickers are included to add detail. The model is based upon the adaptable and user-friendly TT-02 chassis, which offers shaft-driven 4WD.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings (the higher position is used with the Lancia Delta Integrale) and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Specifications

• Length: 425mm, Width: 189mm, Height: 145mm
• Wheelbase: 257mm
• Tire Width/Diameter: 27/67mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor

About the model

• Take a look at the model from the rear, showing off the polycarbonate body’s blister fenders and stylish wing.

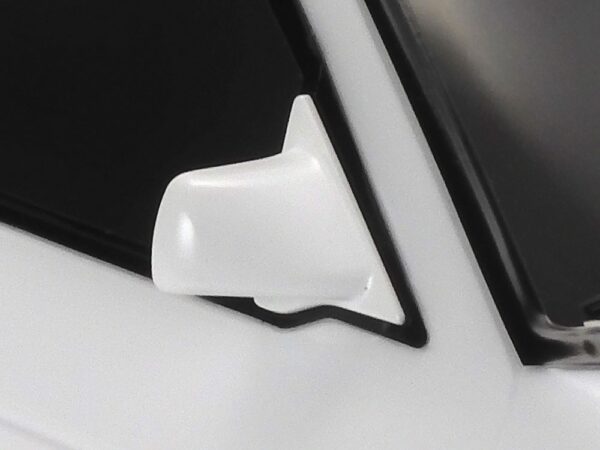

• Dedicated, separately injection molded parts are used to recreate the Escort’s side mirrors.

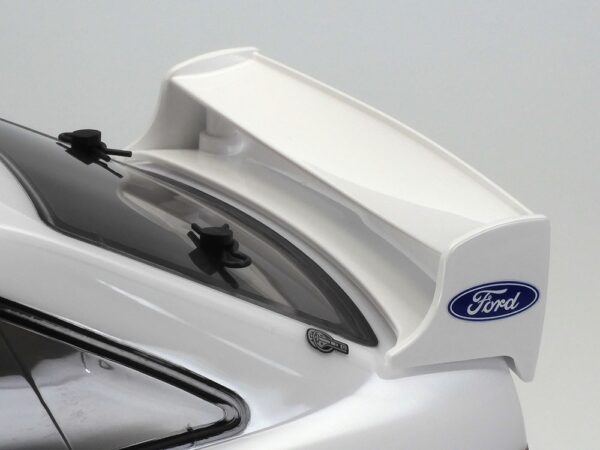

• This image goes close-up on the mini wing at the rear, which is another separately molded component.

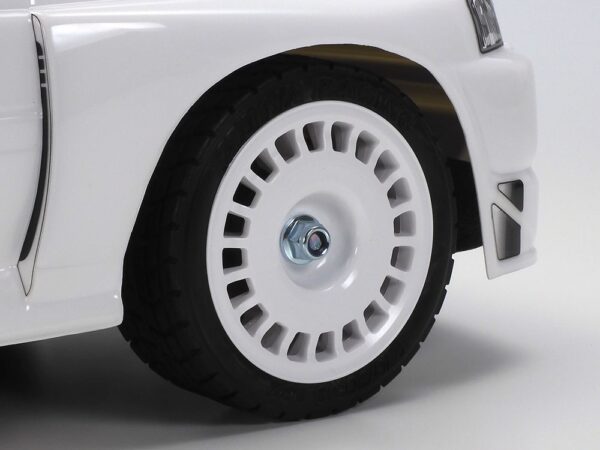

• White dish wheels are in keeping with the simple look, and are paired with treaded tires.

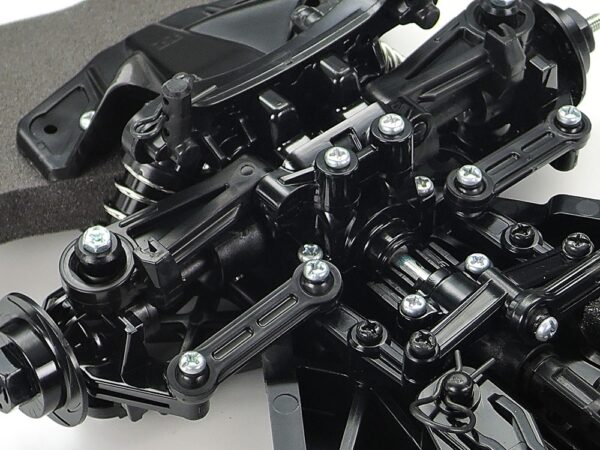

• Resin ball links in the steering linkage joints make for smooth, comfortable motion.

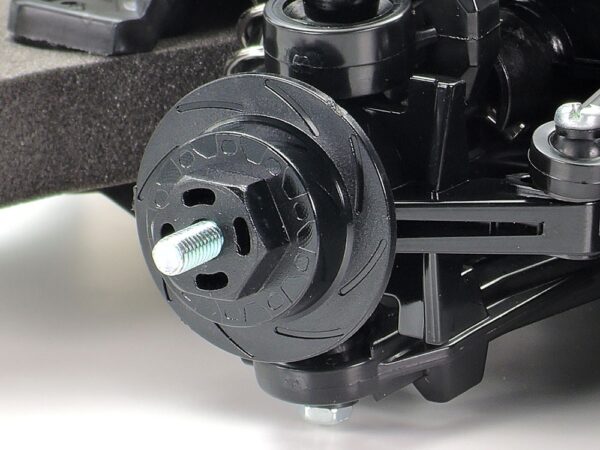

• Wheel hubs are shaped to look like brake discs.

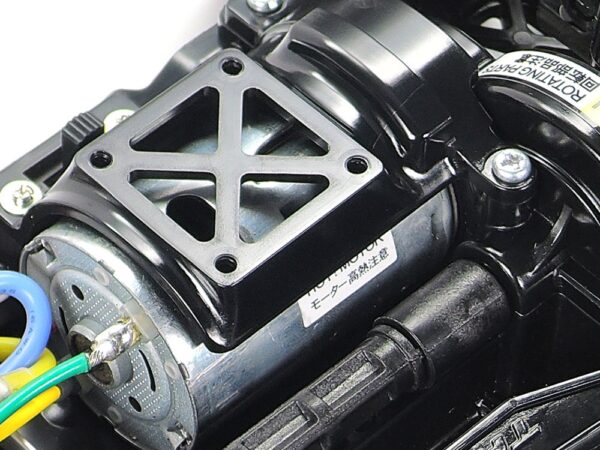

• Motor cover includes removable cooling duct (not attached in image)

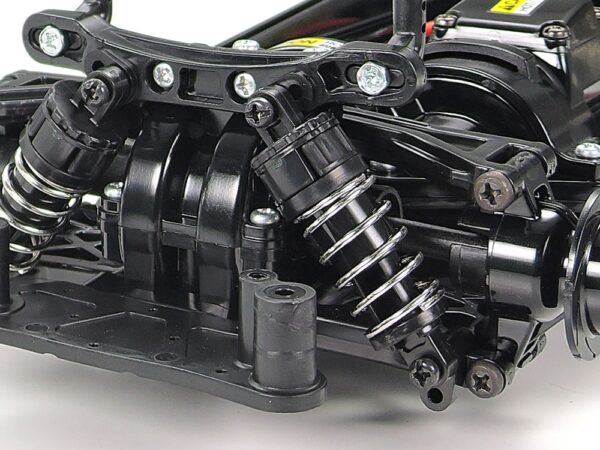

• This image gives a closer look at the rear double-wishbone suspension with friction dampers.

Please note! This is a true-to-scale 1/10 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Redox TX-ONE transmitter with RX-ONE receiver
• Tower Pro digitaalne servo MG958
• Redox NiMH battery 7,2V 3500mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 5000mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)
• Varta Super Heavy Duty R6 AA battery 4-pack

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya PS-1 White (alternatives: Hobbynox valge aerosool värv 150ml)
• Tamiya PS-31 Smoke (alternatives: Hobbynox suitsuhall aerosool värv 150ml)
• Tamiya TS-26 Pure White (Gloss)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
