Tamiya Toyota Gazoo Yaris WRC Hybrid 1/10 (TT-02)

Rally Racer

This R/C model assembly kit depicts the GR Yaris Rally1 Hybrid, which was developed by Toyota to take part in 2022 global rally races. The souped up form of this rally car is recreated expertly by a polycarbonate body, and the model is based upon the shaft-driven 4WD TT-02 chassis. Plentiful stickers are included to decorate the car, as are gun metal color fin spoke wheels and racing radial tires.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings (the higher position is used with the Lancia Delta Integrale) and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Dark gun metal color fin-spoke wheels use racing radial tires.

Specifications

• Length: 416mm, width: 190mm, height: 146mm
• Wheelbase: 257mm
• Tire width/diameter: 26/66mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

About the model

• The complex form of the car is artfully captured by a polycarbonate body.
• Separately molded polycarbonate headlight cases are painted and stickered for a realistic finish.

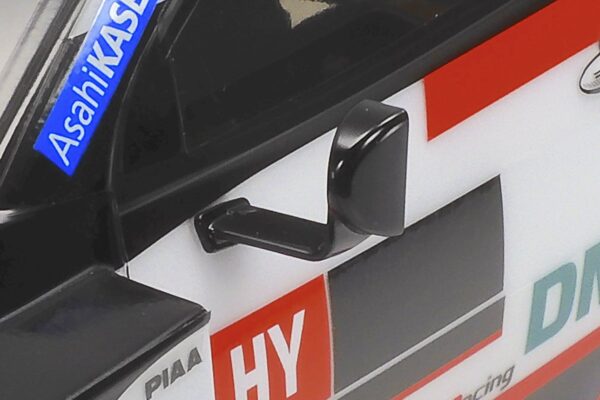

• Separate parts are used to recreate the tall, slim side mirrors.
• Body side air ducts are recreated using separately molded plastic parts.

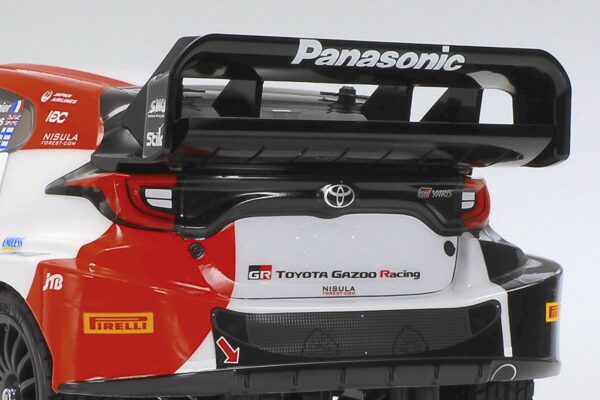

• The complex rear features depictions of the large wing, bumper and more.

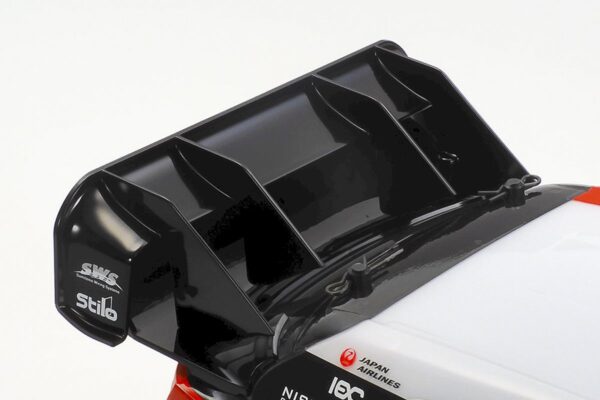

• Wing with vertical splitter design.
• Resin ball links in the steering linkage joints make for smooth, comfortable motion.
• The front suspension uses coil-sprung dampers.
• Motor cover includes removable cooling duct.
• Rear double-wishbone suspension, and the brake disc-shaped wheel hubs.
• Fin spoke wheels are molded in dark gun metal color plastic and paired with racing radial tires.

Please note! This is a true-to-scale 1/10 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Redox TX-ONE transmitter with RX-ONE receiver
• Tower Pro digitaalne servo MG958
• Hobbywing QuicRun WP 1060 ESC 60A (Brushed) 2-3S Car 1/10
• Redox NiMH battery 7,2V 3500mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 5000mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)
• Varta Super Heavy Duty R6 AA battery 4-pack

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya PS-1 White (alternatives: Hobbynox valge aerosool värv 150ml)
• Tamiya PS-5 Black (alternatives: Hobbynox must aerosool värv 150ml)
• Tamiya PS-31 Smoke (alternatives: Hobbynox suitsuhall aerosool värv 150ml)
• Tamiya TS-14 Black (Gloss) (alternatives: Tamiya Mini X-1 Black (Gloss))
• Tamiya TS-26 Pure White (Gloss)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
