Tamiya Mitsubishi Lancer Evolution V (TT-02)

A Masterful Evolution

The Mitsubishi Lancer Evolution was developed as a base for rally cars, with continuous development since its debut in 1992. This R/C model assembly kit depicts the 5th generation model sold from 1998 which featured a 1,770mm-width body, and achieved both Maker and Driver Championships. The powerful form of the car is captured in style by a polycarbonate body, with stickers included to decorate it. The model is based upon the TT-02 chassis.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings (the higher position is used with the Lancia Delta Integrale) and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Specifications

• Length: 445mm
• Width: 185mm
• Height: 145mm
• Wheelbase: 257mm
• Tire width/diameter: 27/66mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor

About the model

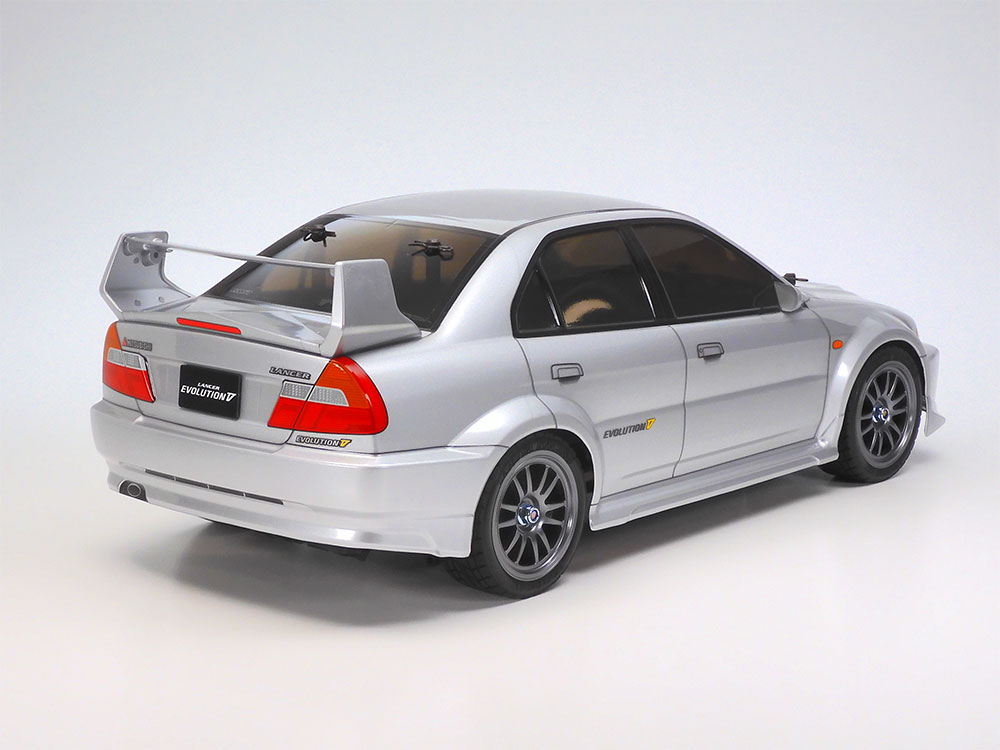

• With front blister fenders and rear overfenders, the Lancer Evolution V body is a classic, and recreated here in polycarbonate.

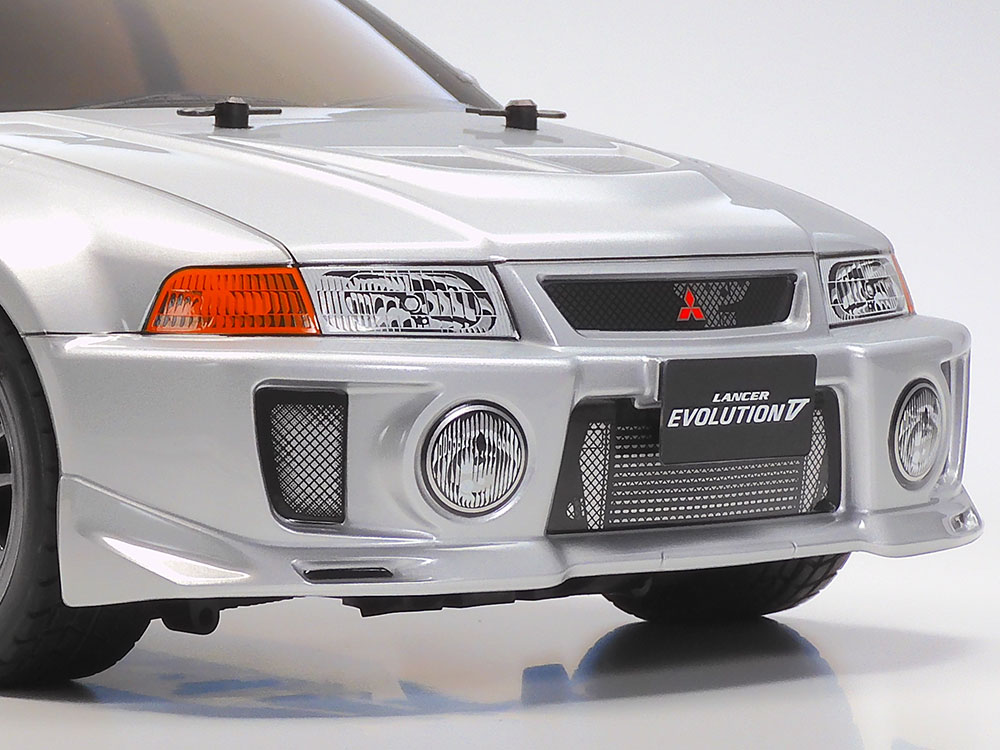

• The front of the car has plenty to catch the eye, with depictions of the oversized bumper with air intakes, and bonnet with outlets.

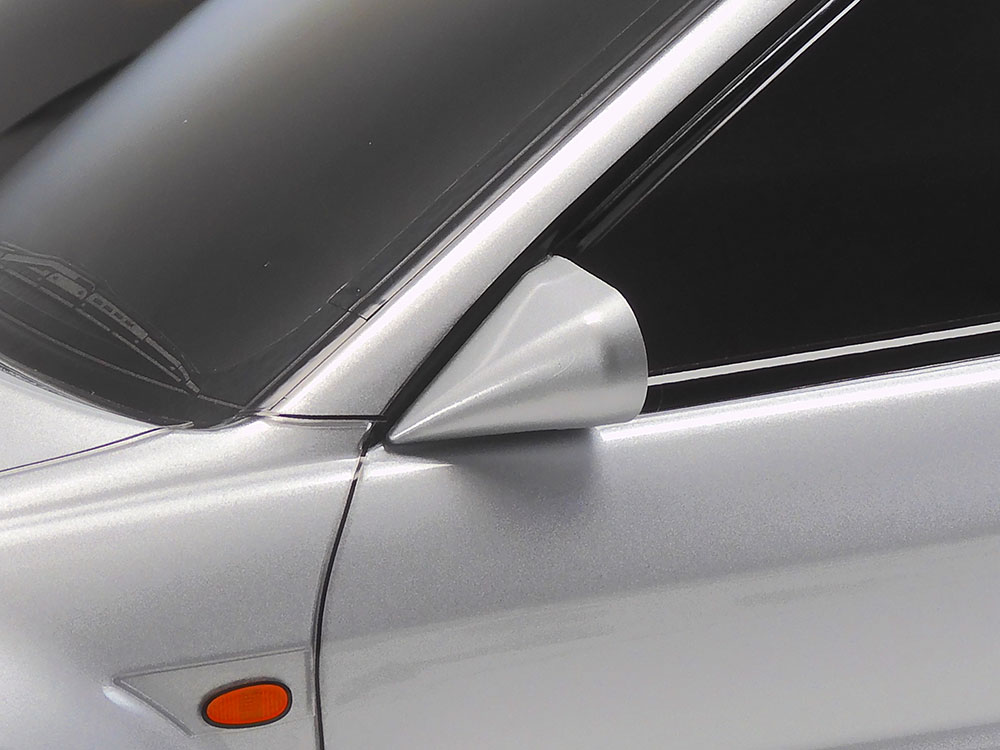

• Separately molded parts recreate side mirrors, and window masking stickers are included to help when painting.

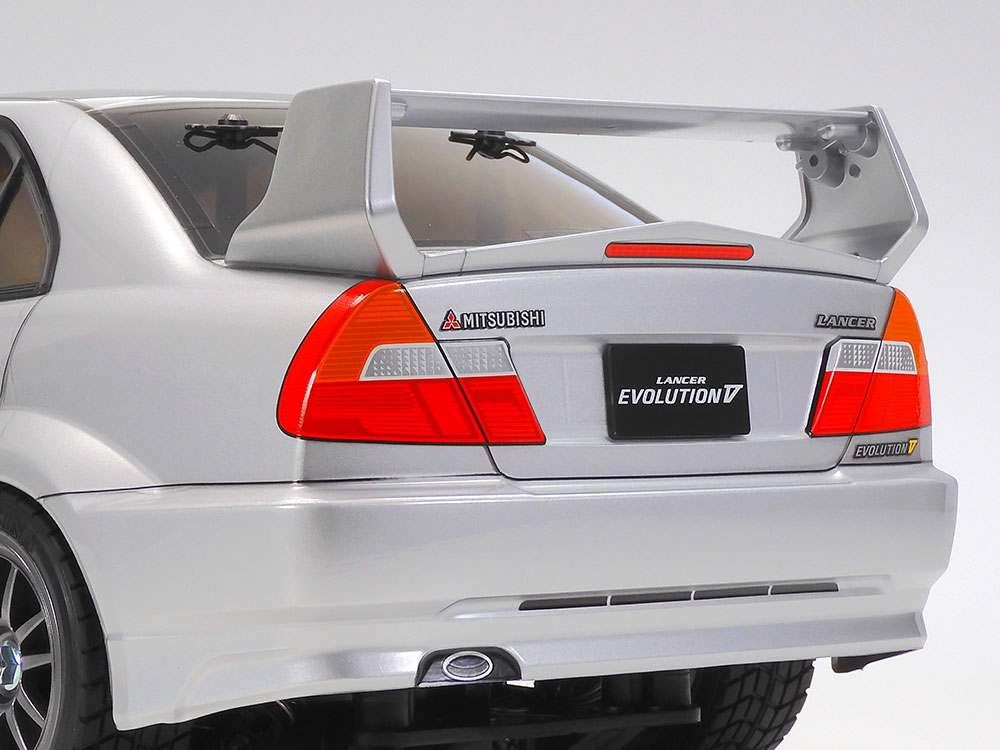

• Stickers are used to recreate the rear emblems and license plate decoration.

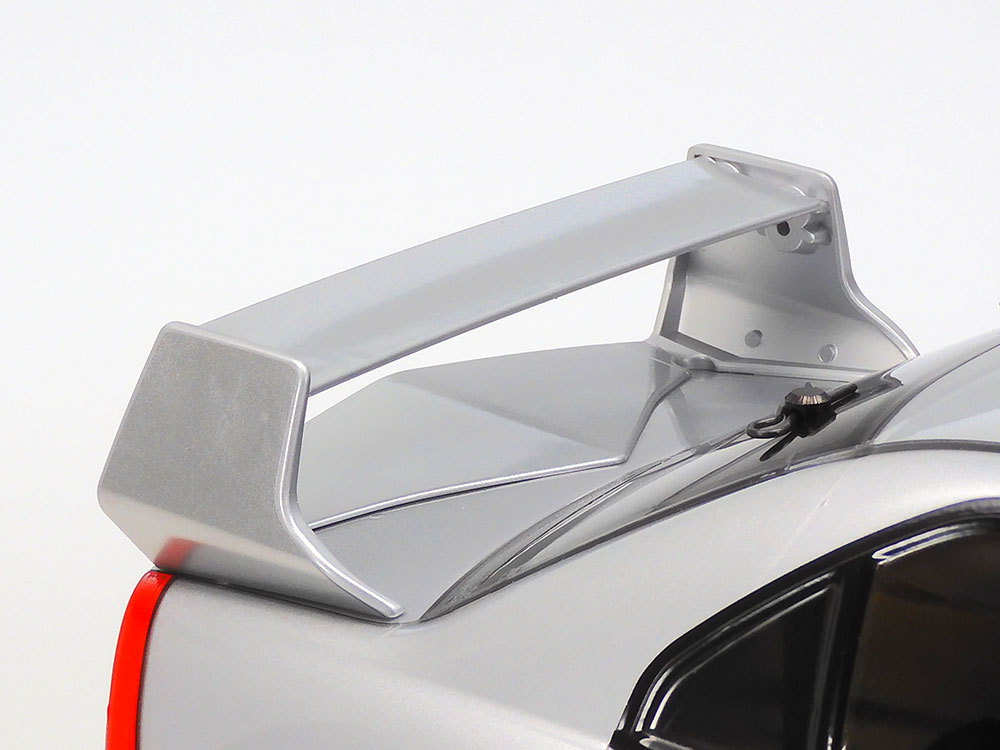

• Wing and wicker bill are recreated using a separately molded component.

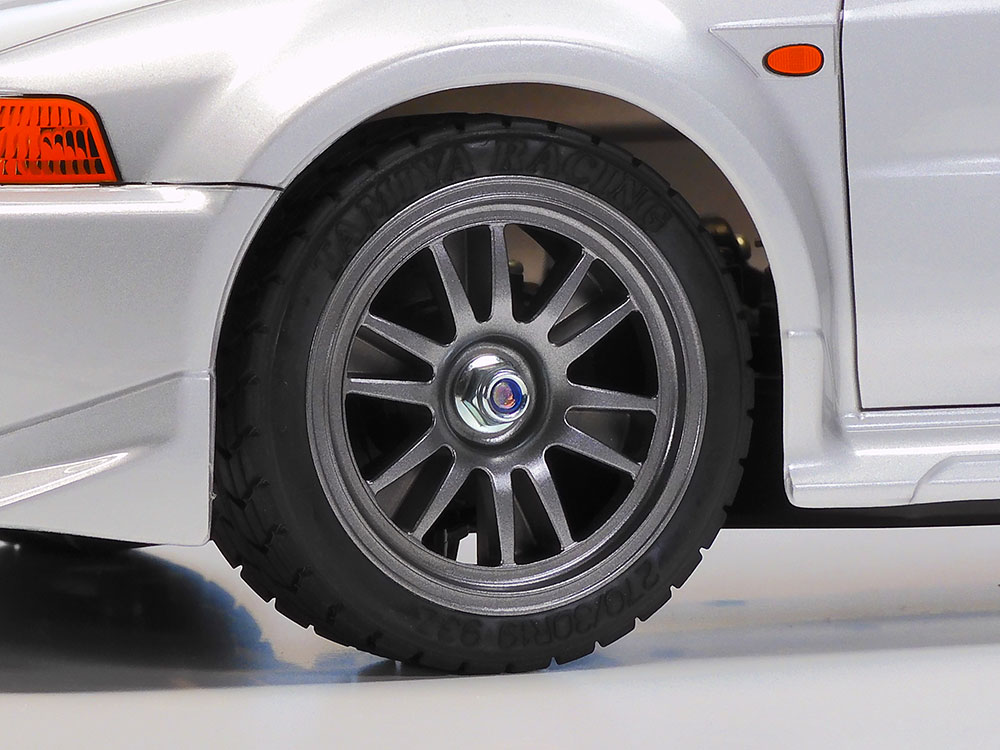

• Gun metal color 12-spoke wheels are paired with semi-pneumatic tires.
• Resin ball links in the steering linkage joints make for smooth, comfortable motion.

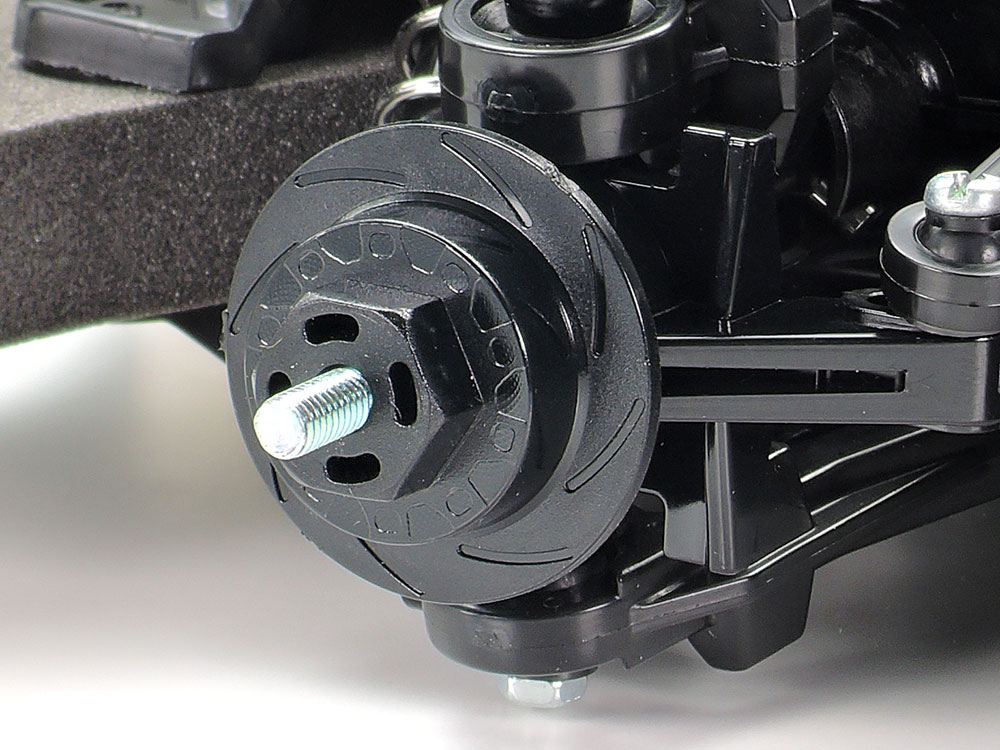

• Wheel hubs are shaped to look like brake discs.

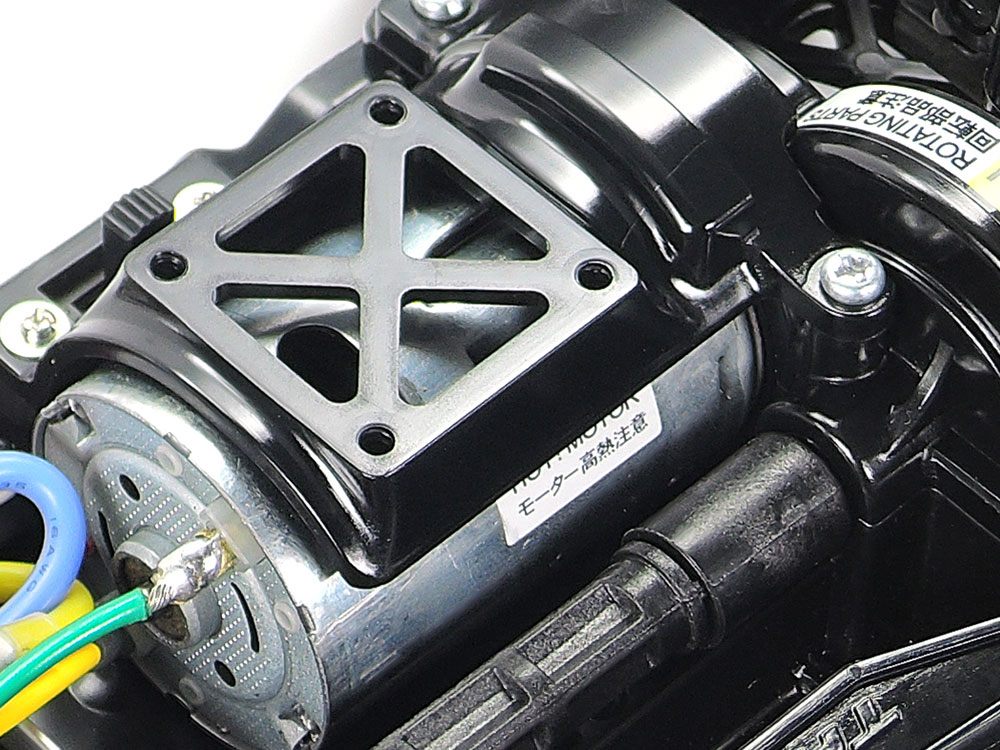

• Motor cover includes removable cooling duct (not attached in image).

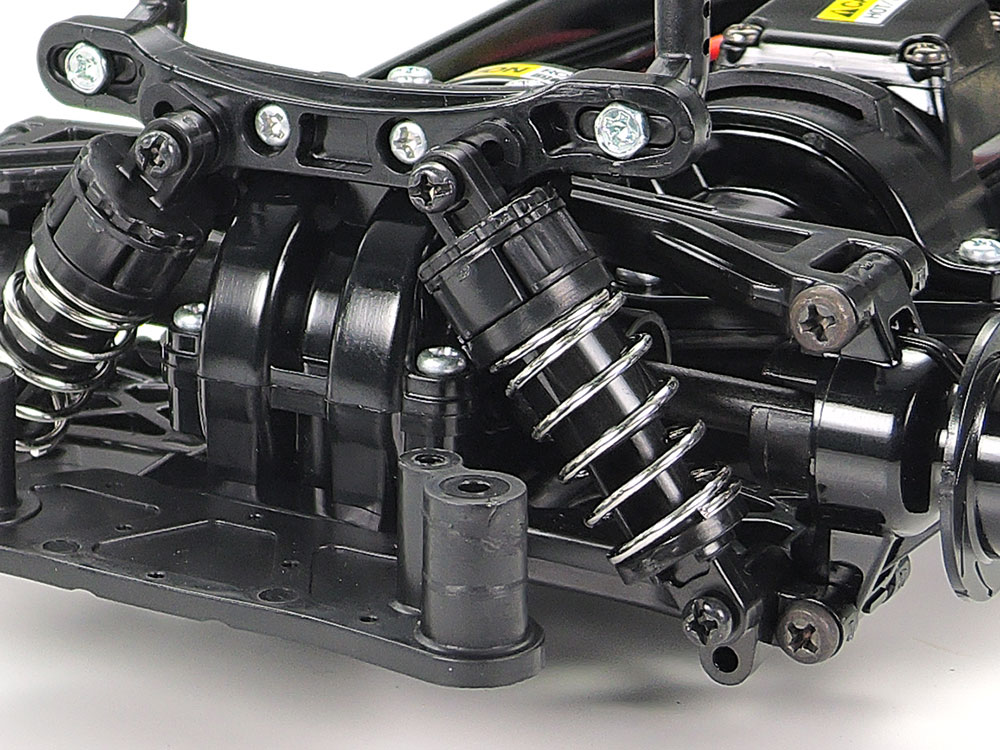

• This image gives a closer look at the rear double-wishbone suspension with friction dampers.
• Spare parts are available
• A range of tuning parts are available for the Tamiya TT-02 chassis

Please note! This is a true-to-scale 1/10 model kit that requires assembly and painting. Paints, electronic components and tools are not included in the kit!

Additionally needed electronics

Here are our recommendations for this model. Of course, you can also choose other suitable parts. If you have any questions about compatibility, please do get in touch with us!

• Redox TX-ONE transmitter with RX-ONE receiver
• Tower Pro digitaalne servo MG958
• Redox NiMH battery 7,2V 3500mAh (Tamiya connector) (alternatives: Redox NiMH battery 7,2V 5000mAh (Tamiya connector), Vapex NiMH battery 7,2V 2500mAh (Tamiya connector), Vapex NiMH battery 7,2V 3000mAh (Tamiya connector), Vapex NiMH battery 7,2V 4000mAh (Deans connector))
• HotRC N8 1-8S NiMH charger (20W)
• Varta Super Heavy Duty R6 AA battery 4-pack

Recommended colours

These are the colours recommended in the Tamiya guide. You are always free to choose your own colour scheme. You can find all our colours here.

• Tamiya PS-12 Silver (alternatives: Hobbynox metallik hõbe spreivärv 150 ml)
• Tamiya PS-31 Smoke (alternatives: Hobbynox suitsuhall aerosool värv 150ml)
• Tamiya TS-17 Aluminium (Gloss)

If necessary, we can help with assembling the model and painting the bodywork – please get in touch with us.
